| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | SG-200KVA |
| Minimum Order Quantity: | 1unit |
| Price: | $500-$100000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000set/month |
| Type: | Dry Type | Primary Voltage: | 10kV-35kV Or Customized |
|---|---|---|---|
| Secondary Voltage: | 0.4KV Or Customized | Frequency: | 50/60Hz |
| Cooling Method: | Air Cooling | Insulation Level: | F/H |
| Material: | Aluminum/ Copper | Vector Group: | DYN11/YYN0 |
| High Light: | 3Phase Auto Isolation Transformer,Auto Isolation Transformer 13Kv,200Kva Three Phase Isolation Transformer |
||

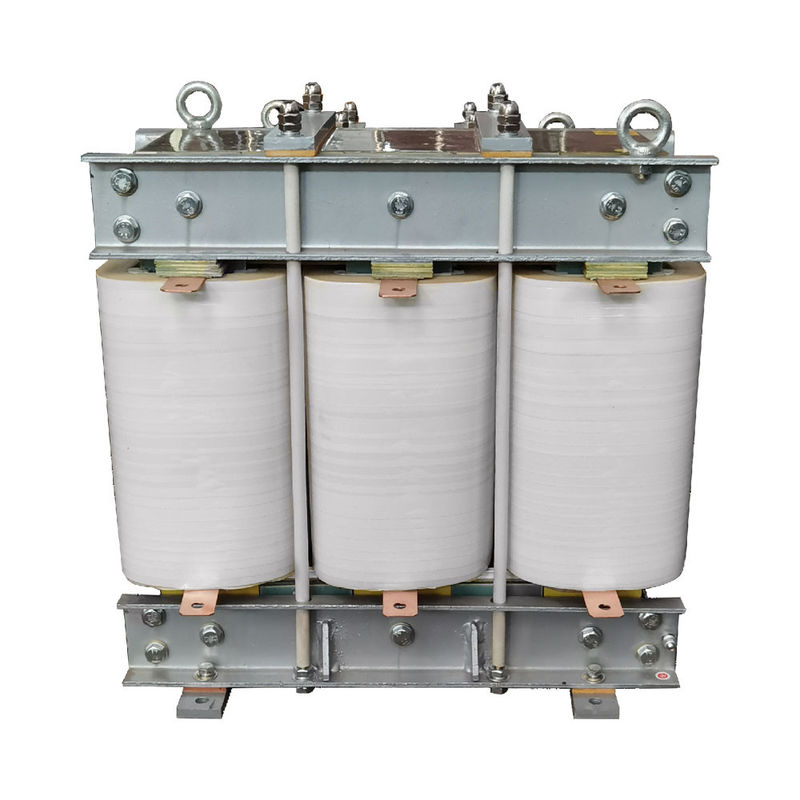

200Kva Three Phase Auto Isolation Transformer Dry Type 13Kv
Feature
1.Good spread hot, long service life, strong load, which can keep on circulating with on-load in the environment of more than 120% load and no winding.
2.High safety and protecting fire capacity, no smokina discharge in the high temperature of 800c burning.
3.Strong withstanding hot capacity.
4.Completely waterproof and damp-proof.
5.Low-loss, obviously saving energy; compared to the SC9 series dry transformer, the no-load loss average decreased 10% , the on-load loss decreased 5%.
6.The insulation material and copper winding after use-life can be reused with no pollution.
Specification
| Type | installation dimension | External dimension | N.W(kg) |
| 100kva | 400*250 | 850*680*800 | 360 |
| 110kva | 400*240 | 850*680*800 | 370 |
| 120kva | 400*250 | 850*680*800 | 390 |
| 135kva | 400*260 | 850*680*800 | 420 |
| 150kva | 400*270 | 900*700*850 | 440 |
| 160kva | 400*260 | 900*700*850 | 480 |
| 180kva | 400*270 | 900*700*850 | 510 |
| 200kva | 400*275 | 900*700*850 | 600 |
| 250kva | 500*290 | 950*750*900 | 700 |
| 270kva | 500*300 | 950*750*900 | 750 |
| 300kva | 500*300 | 1000*800*1000 | 820 |
| 350kva | 500*320 | 1050*800*1000 | 880 |
| 400kva | 500*320 | 1100*830*1000 | 950 |
| 500kva | 500*350 | 1100*850*1000 | 1100 |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
