Toroidal Isolation Transformer
>

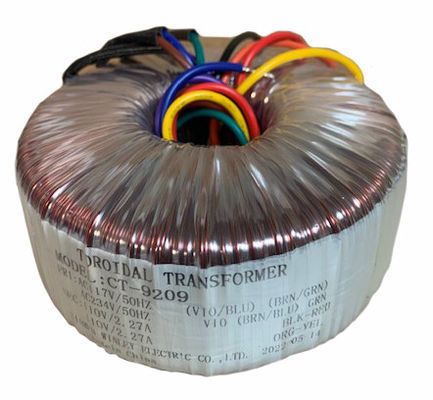

500VA Toroidal Output Transformer 117V 234V 2.27A

500VA Toroidal Output Transformer 117V 234V 2.27A

Brand Name: WINLEY
Model Number: CT-9209
MOQ: 1
Price: $20-$1,500
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Usage:
Equipment
Coil Structure:
Toroidal
Phase:
Single
Frequency:
50/60Hz
Voltage:
117V/234V
Current:
2.27A
Material:
100% Copper Wire
Efficiency:
>92%
Supply Ability:
10000pcs per month
Highlight:

500VA Toroidal Output Transformer

,

117V Toroidal Output Transformer

,

234V Toroidal Output Transformer

Product Description

500VA Toroidal Isolation Transformer 117V 234V 2.27A



Features



1). Installation method:Sub-plate mount

2). Flame resistance:UL94-V0

3). Work temperature:-30℃~+40℃

4). Withstand voltage:4.5KV AC

5). Waterproof:IP00

6). Use:Audio,Lighting,Equipment,Iatrical equipment,Apparatus,etc





Specifications

Item Description
Capacity 500W
Frequency 50/60Hz
Max. Temperature 60℃
Temperature rise <60℃
Insulation class B/F
Voltage ratio 115VACx2-35VACx2
Winding material Copper
Insulation Resistance PRI.-SEC.: 500V DC 100 MΩ/Primary to Secondary 500VDC 100MΩ Min.
Short-Circuit of winding turn PRI. Iput: 440V AC 150HZ/ Primary and Secondary Not break down)
Hi-Pot Test PRI.-SEC.: 4.2KV/5mA/2S / Primary and Secondary Not break down )
Mounting metal plate Provided
Rubber gasket Provided
Standards VDE0550/IEC204-1/IEC61558/EC439
Warranty 24monthes





Application:



1). Green Power -- Coilcore components for green energy market covering isolation transformers, drive inductors, line reactors, DC to AC conversion, etc.

2). Military -- Considering not only optimum cost, weight, size, but most important of reliability, our amorphous core transformers, 400Hz transformers, power chokes performance well to military industry.

3). Tele-communications -- Coilcore supply power chokes, filter chokes, common mode chokes, isolation transformers for ele-communication application.

4). Medical -- Coilcore focus on power solutions for the medical industry where reliability and performance are critical. Our toroidal medial power transormer with low stray field and low leakage current levels.

5). Industrial -- Our core compence magnetics including industrial control transformers, isolating safety transformers, high current inductors, and power inductors, with over 15 years long term project design experience.

6). Rail -- Safety and efficiency must come first, we obtain full experience of toroidal transformers, current transformers, high frequency transformers, power rail transformers, line filter chokes, emc filters, HF chokes for railway and train applications.



500W Toroidal Industrial Control Tansformer 35VAC/7.15A Sub-Plate Mount 0

500W Toroidal Industrial Control Tansformer 35VAC/7.15A Sub-Plate Mount 1

500VA Toroidal Output Transformer 117V 234V 2.27A 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
