Harmonic Wave Filtration Three Phase Harmonic Filter Reactor 600V 300Kvar 7%

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: 300Kvar
Minimum Order Quantity: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 10000units/month
Detail Information
Usage: Harmonic Wave Filtration Voltage: 600V
Capacitance: 300Kvar Reactance Ratio: 7%
Type: Series Reactor Working Condition: -15℃-+40℃
Withstand Voltage: 3500V Insulation Class: F
High Light:

Three Phase harmonic filter reactor


3 phase line reactor 300Kvar


harmonic filter reactor 600V

Product Description

Harmonic Wave Filtration Three Phase Reactor 600V 300Kvar 7%





High performance foil winding structure .low direct current resistance ,strong resistance to short circuit and good overload ability in short time characterizes this input AC reactor .For above class composite insulating materials are used to maintain reliable performance of the product under harsh working conditions, the design of the facility is characterized by low magnetic flux density ,excellent linearity and strong overload capacity ,Moreover, the cooperation of the design and vacuum pressure impregnation process reduces the noise of the reactor which also possesses the advantages of low consumption ,high efficiency of low temperature rise. The iron core employs the cold rolled oriented silicon steel sheet.




Rated voltage: 250, 440V, 480V, 525V (customizable) Reactance rate: 4.5%,5.6%, 6%, 7%, 13.5%, 14% (customizable)
Phase number: single phase or three-phase Inductance: Ln + 3%, + 5%
Rated frequency: 50Hz (for 60Hz to be specified) Stable over current: 1.35In
Voltage test: winding to ground 3KV/1min Temperature rise: coil temperature rise≤80K
Loss:≤15W/kVAr Operating environment: -40° to 50°, relative humidity no more than 90%
Temperature protection:105℃ or 130℃ normally closed Insulation class: F or H
Noise:≤50dB Protection grade: IP00, indoor use
Linearity:1.8In Installation spacing: 30mm

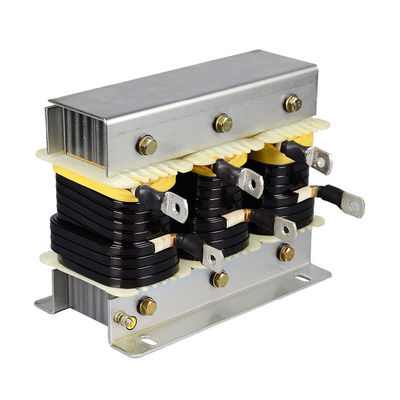

Harmonic Wave Filtration Three Phase Harmonic Filter Reactor 600V 300Kvar 7% 0

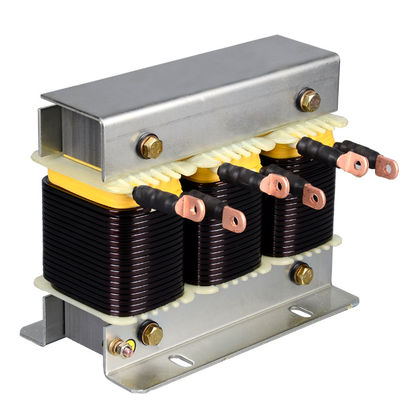

Harmonic Wave Filtration Three Phase Harmonic Filter Reactor 600V 300Kvar 7% 1




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
