| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | 0.934mH |
| Minimum Order Quantity: | 1unit |
| Price: | $20-$8000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 10000units/month |
| Type: | Tower | Noise: | Low Noise |
|---|---|---|---|
| Inductance: | 0.934mH | Current: | 15A |
| Coil Number: | Multi-Winding | Insulation: | H |
| Material: | 100% Copper Wire | Frequency: | 50Hz Or 60Hz |
| High Light: | Multi-Winding 3 phase reactor,0.934mH dry type reactor,Low Noise 3 phase reactor |
||

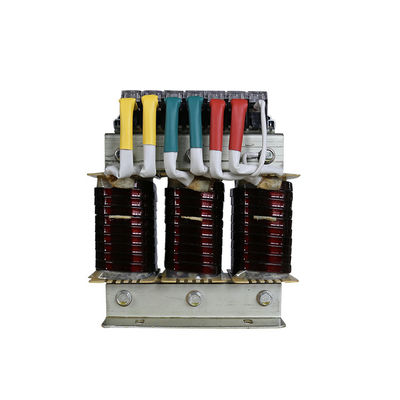

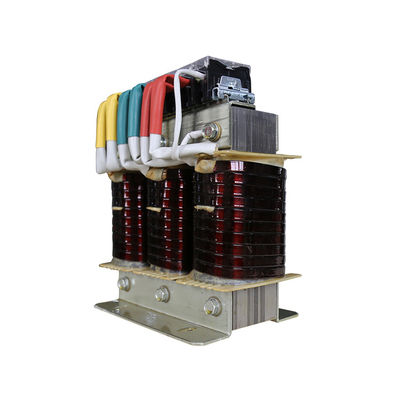

Tower Low Noise Three Phase Reactor 0.934mH 15A Multi-Winding
Features
1. Pure dry structure.
2. High quality silicon steel sheet, copper wire manufacture.
3. Vacuum drying impregnation process.
4. The design margin is big, the loss is small.
5. Overload, can be 1.35 times the rated current of long-term work.
6. Low noise.
Specification
| Capacitance (kVar) | Reactor Capacity (War) | Rated Current (A) |
Inductance (mH) |
Dimension L*D*H (mm) |
Installation size A*B (mm) |
Installation size (mm) |
| 1.5-2.2 | 10 | 2% | 1.4 | 160*120*160 | 80*60 | 10*18 |
| 3.7·5.5 | 15 | 2% | 0.934 | 160*135*140 | 80*60 | 10*18 |
| 7.5 | 20 | 2% | 0.7 | 160*135*140 | 80*60 | 10*18 |
| 11 | 30 | 2% | 0.467 | 160*135*140 | 80*60 | 10*18 |
| 15 | 40 | 2% | 0.36 | 160*135*140 | 80*60 | 10*18 |
| 18-18.5 | 50 | 2% | 0.28 | 160*140*140 | 80*75 | 10*18 |
| 22 | 60 | 2% | 0.233 | 160*140*140 | 80*75 | 10*18 |
| 30 | 80 | 2% | 0.175 | 160*150*140 | 80*85 | 10*18 |
| 37 | 90 | 2% | 0.156 | 160*150*140 | 80*85 | 10*18 |
| 45 | 120 | 2% | 0.117 | 160*160*140 | 80*95 | 10*18 |
| 55 | 150 | 2% | 0.093 | 225*150*190 | 120*85 | 12*20 |
| 75 | 200 | 2% | 0.07 | 225*150*190 | 120*85 | 12*20 |
| 90-93 | 230 | 2% | 0.061 | 225*160*190 | 120*95 | 12*20 |
| 110 | 250 | 2% | 0.056 | 225*160*190 | 120*95 | 12*20 |
| 132 | 290 | 2% | 0.048 | 260*170*250 | 135*85 | 12*20 |
| 160 | 330 | 2% | 0.042 | 260*170*250 | 135*95 | 12*20 |
| 185 | 390 | 2% | 0.036 | 260*180*250 | 135*95 | 12*20 |
| 220 | 490 | 2% | 0.029 | 290*200*310 | 135*95 | 12*20 |
| 240-250 | 530 | 2% | 0.026 | 290*200*310 | 135*95 | 12*20 |
| 280 | 600 | 2% | 0.023 | 290*210*310 | 135,105 | 12*20 |
| 300-315 | 660 | 2% | 0.021 | 290*210*310 | 135*105 | 12*20 |
| 350-355 | 720 | 2% | 0.019 | 290*230*310 | 135*125 | 12*20 |
| 380 | 800 | 2% | 0.018 | 290*230*310 | 135*125 | 12*20 |
| 450 | 1,000 | 2% | 0.014 | 360*220*420 | 160*120 | 12*20 |
| 550 | 1,250 | 2% | 0.011 | 360*230*420 | 160*130 | 12*20 |
| 630 | 1,600 | 2% | 0.009 | 360*260*420 | 160*160 | 12*20 |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
