8000VA Toroidal Isolation Transformer

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: 8000VA
Minimum Order Quantity: 50units
Price: $20-$1000
Packaging Details: Pallet
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 10000units/month
Detail Information
Usage: Power Supply Insulation: H
Centre Hole: Epoxy Phase: 1 Phase
Secondary Voltage: 160VAC/25Ax2 Type: Dry Type Power Transformer
Lead Wire: 20AWG/600V Input: Customized
High Light:

8000VA Toroidal Isolation Transformer

,

160VAC dry type power transformer

,

Toroidal Isolation Transformer 220V


Product Description

8000VA H Class Toroidal Tansformer 220V-160VAC/25A Epoxy Centre Hole





Features



1).Low leakage flux

2).Low hum noise

3). Low weight

4). Low strayfield levels

5). High efficiency (Up to 99%)

6). Low tempreture rise (75℃ Max)





Specifications

Item Description
Capacity 8000VA
Frequency 50/60Hz
Max. Temperature 60℃
Temperature rise <60℃
Insulation class B/F
Voltage ratio 220VAC-160VACx2
Winding material Copper
Insulation Resistance PRI.-SEC.: 500V DC 100 MΩ/Primary to Secondary 500VDC 100MΩ Min.
Short-Circuit of winding turn PRI. Iput: 440V AC 150HZ/ Primary and Secondary Not break down)
Hi-Pot Test PRI.-SEC.: 4.2KV/5mA/2S / Primary and Secondary Not break down )
Mounting metal plate Provided
Rubber gasket Provided
Standards VDE0550/IEC204-1/IEC61558/EC439
Warranty 24monthes





Application:



1). Green Power -- Coil core components for green energy market covering isolation transformers, drive inductors, line reactors, DC to AC conversion, etc.

2). Military -- Considering not only optimum cost, weight, size, but most important of reliability, our amorphous core transformers, 400Hz transformers, power chokes performance well to military industry.

3). Tele-communications -- Coilcore supply power chokes, filter chokes, common mode chokes, isolation transformers for ele-communication application.

4). Medical -- Coilcore focus on power solutions for the medical industry where reliability and performance are critical. Our toroidal medial power transormer with low stray field and low leakage current levels.

5). Industrial -- Our core compence magnetics including industrial control transformers, isolating safety transformers, high current inductors, and power inductors, with over 15 years long term project design experience.

6). Rail -- Safety and efficiency must come first, we obtain full experience of toroidal transformers, current transformers, high frequency transformers, power rail transformers, line filter chokes, emc filters, HF chokes for railway and train applications.

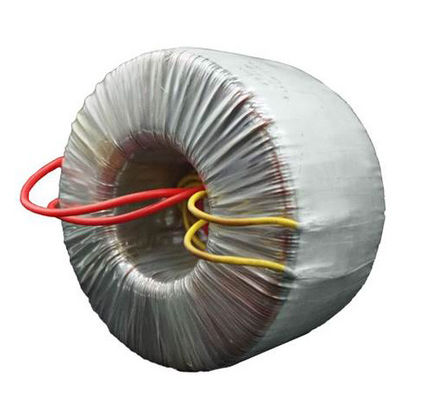

8000VA Toroidal Isolation Transformer 0

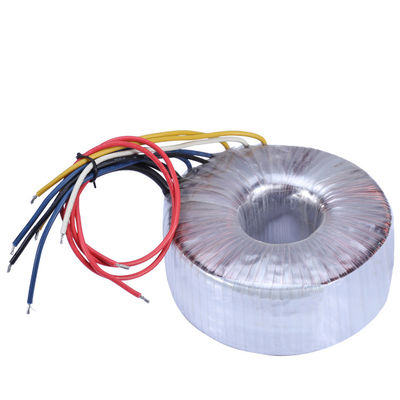

8000VA Toroidal Isolation Transformer 1



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
