Industrial Control Transformer
>

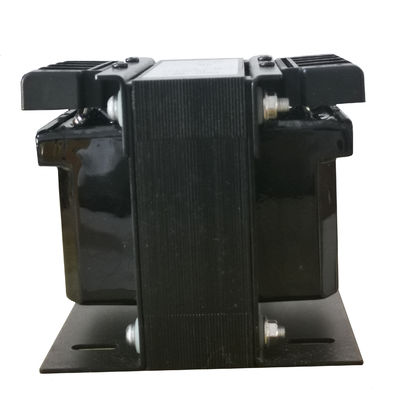

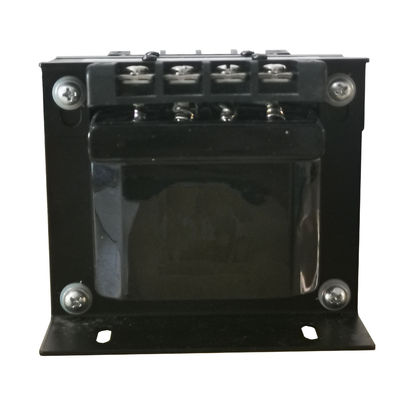

Low Losses Industrial Control Transformer

Low Losses Industrial Control Transformer

Brand Name: WINLEY
Model Number: 100VA
MOQ: 50units
Price: $20-$600
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE,UL
Usage:
Electrical Power Supply
Phase:
Single Phase
Primary Voltage:
240V/480V/600V
Secondary Voltage:
120/100
Insulation:
Epoxy
Terminal:
Finger Safe
Standard:
EN61558 UL5085
Losses:
Low Losses
Supply Ability:
10000units/month
Highlight:

Low Losses Industrial Control Transformer

,

epoxy resin current transformer 240V

,

480V 600V Industrial Control Transformer

Product Description

Low Losses Industrial Control Transformer Epoxy 240V/480V/600V





Features



● Molded-in terminals

● 50/60 Hz operation

● 130°C/155°C/180°C insulation system standard

● Performance meets/ exceeds requirements of ANSI/NEMA ST-1



Specification



Product Name Single phase Control transformer
Product Model BK-200VA
Winding Material Enameled copper wire
Capacity 10VA-5000VA
Input Voltage 230V(Can be customized)
Output Voltage 115V(Can be customized)
Frequency 50/60Hz
Connection Type Finger safe Terminals
Insulation Level F
Enclosures Protection Level IP00 or higher
Withstand voltage Test 3000V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz/830V/60s
Cooling Method Natural or air cooling
Temperature Rise ≤80K
Transformation Ratio <3%
Air Carrying Current <3%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!



Low Losses Industrial Control Transformer 0





FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
