|Coil Number:||Double Winding Transformer||Phase:||Single|
|Material:||100% Copper Wire||Standard:||IEC60076,EN61558 UL5085|
|Efficiency:||90-95%||Cooling Method:||Natural Or Air Cooling|
Single Phase Medical Isolation Transformer,
Single phase solation Transformer 480V,
Medical Isolation Transformer 690V
Single phase Medical Isolation Transformer 690V/480V/415V/380V/220V/120V

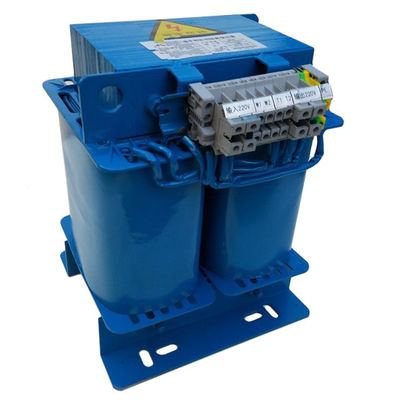

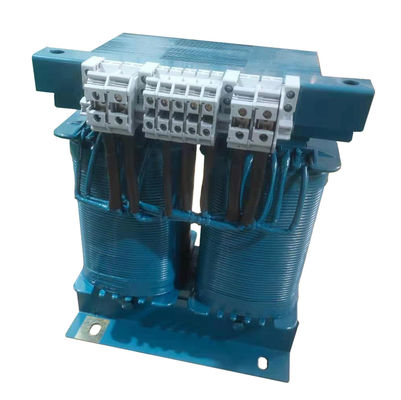

1. The transformer iron core is made of high-quality precision silicon steel sheets, which has the characteristics of small loss and high conversion rate.
2. Double insulation is adopted between the windings, and an electrostatic shielding layer is designed to minimize the electromagnetic interference between the two windings.
3. A PT100 temperature sensor is installed in the winding, which can be used to monitor the winding temperature.
Main technical data:
|Product Name||Medical isolation transformer|
|Product Model||HDB / IT|
|Winding Material||Enameled copper wire|
|Insulation Class||F / H|
|Protection Class||IP 00 (construction type: open) / IP23 (enclosure included)|
Withstand Voltage Test
|Primary to secondary 2.5KV/min
Primary to safety ground 2.5KV/min
Secondary to safety ground 2.5KV/min
|Primary to secondary DC 2500V>500 megohm
Primary to safety ground DC 2500V>500 megohm
Secondary to safety ground DC 2500V>500 megohm
|Induction Withstand Voltage Test||125Hz/800V/min|
|Temperature Rise||< 115K|
|Impedance Voltage||about 4%|
|Operating Temperature||-25℃~40℃ (40℃ ,93% RH,56days)|
|Storage Temperature||-25℃~100℃ (40℃ ,93% RH,56days)|
|The technical parameter for reference only, for exactly technical information, please feel free to contact us!|
