Medical Isolation Transformer
>

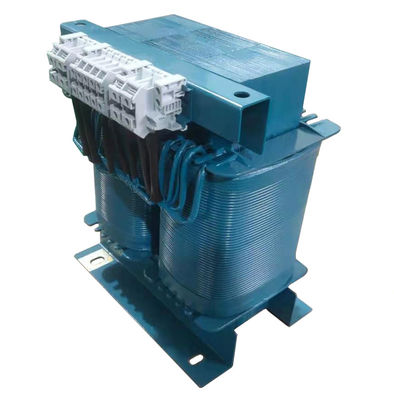

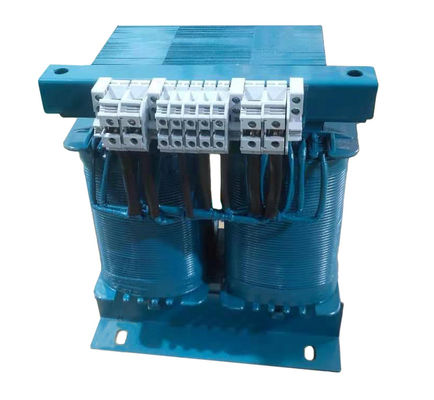

H Class Medical Power Isolation Transformer Epoxy 50/60Hz Copper Coil

H Class Medical Power Isolation Transformer Epoxy 50/60Hz Copper Coil

Brand Name: WINLEY
Model Number: HDB-11KVA
MOQ: 1unit
Price: $25~$60000/Unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE,UL
Coil Structure:
Toroidal
Frequency:
50/60Hz
Insulation:
Epoxy H Class
Winding:
Copper Coil
Standard:
EN61558 UL5085
Cooling Method:
Natural Or Air Cooling
Terminal:
Finger Safe
Scondary Voltage:
380V/220V/120V
Supply Ability:
1000units/month
Highlight:

H Class power isolation transformer

,

480v 3 phase to 240v single phase transformer

,

power isolation transformer 50/60Hz

Product Description

H Class Medical Isolation Transformer Epoxy 50/60Hz Copper Coil



Features



1.Medical isolation transformer is a professional IT system isolation transformer developed for medical places. The transformer is seamlessly wound with high-quality cold-rolled silicon steel strip. Because the iron core has no air gap, it reduces the induced vibration noise of the iron core and reduces the buzzing during operation.
2.Due to the small iron loss, the winding has good heat dissipation on the iron core with lower temperature, and the temperature rise is low; the transformer iron core has no air gap, the winding is uniform, and the magnetic interference is small. This structure makes the magnetic leakage and electromagnetic radiation small, and no need to add Shielding can be used in electronic equipment and medical equipment with high electromagnetic environment requirements, and the electrical efficiency is as high as 95% or more.
3.Small size.





Main technical data:

Parameters:
Product Name Medical isolation transformer
Product Model HDB / IT
Winding Material Enameled copper wire
Capacity 3.15KVA~10KVA
Input Voltage 220V/230V/380V/Customized
Output Voltage 220V/230V/380V/Customized
Frequency 50-60Hz
Insulation Class F / H
Protection Class IP 00 (construction type: open) / IP23 (enclosure included)



Withstand Voltage Test

Primary to secondary 2.5KV/min
Primary to safety ground 2.5KV/min
Secondary to safety ground 2.5KV/min



Insulation Resistance

Primary to secondary DC 2500V>500 megohm
Primary to safety ground DC 2500V>500 megohm
Secondary to safety ground DC 2500V>500 megohm
Induction Withstand Voltage Test 125Hz/800V/min
Ground Resistance 25A<100milliohm
Cooling Method Natural
Noise Grade <40dB
Temperature Rise < 115K
Impedance Voltage about 4%
Total Losses <5%
Efficiency >96%
Operating Temperature -25℃~40℃ (40℃ ,93% RH,56days)
Storage Temperature -25℃~100℃ (40℃ ,93% RH,56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process:

H Class Medical Power Isolation Transformer Epoxy 50/60Hz Copper Coil 0H Class Medical Power Isolation Transformer Epoxy 50/60Hz Copper Coil 1





FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
