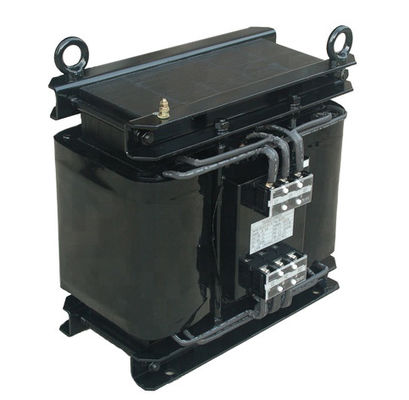

380V/230V/220V/120V Medical Single Phase Isolation Transformer Copper Winding

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,IEC
Model Number: HDB-12KVA
Minimum Order Quantity: 1unit
Price: $25~$60000/Unit
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 1000units/month
Detail Information
Phase: Single Frequency: 50/60Hz/Customize
Input Voltage: 380V/230V/220V/120V Coil: Copper Winding
Insulation: H Type: Low Voltage Isolation Transformer
Cooling Method: Natural Or Air Cooling Color: Black
High Light:

220V/120V single phase isolation transformer

,

Black 16 kva single phase transformer

,

380V/230V single phase isolation transformer


Product Description

380V/230V/220V/120V Medical Isolation Transformer Single Phase



Feature


1.Medical isolation transformers are dedicated to medical IT systems. There are two types: conventional single-phase medical isolation transformers and special three-phase medical isolation transformers. The conventional capacity is 3.15, 4KVA, 5KVA, 6.3KVA, 8KVA, 10KVA, etc.
2.The high-quality precision silicon steel sheet is superimposed, which has the characteristics of low loss and high conversion rate.
3.Double insulation treatment is adopted between the winding and the winding, and an electrostatic shielding layer is designed to reduce the electromagnetic interference between the two windings.





Main technical data:

Parameters:
Product Name Medical isolation transformer
Product Model HDB / IT
Winding Material Enameled copper wire
Capacity 3.15KVA~10KVA
Input Voltage 220V/230V/380V/Customized
Output Voltage 220V/230V/380V/Customized
Frequency 50-60Hz
Insulation Class F / H

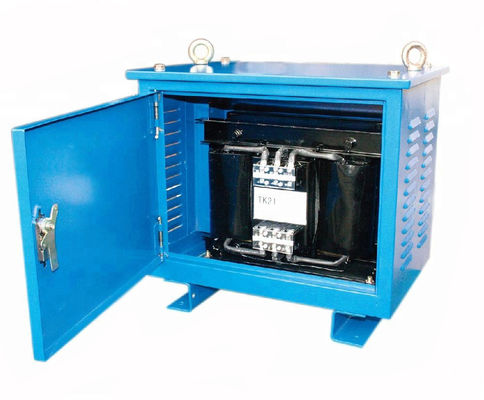

Protection Class IP 00 (construction type: open) / IP23 (enclosure included)



Withstand Voltage Test

Primary to secondary 2.5KV/min
Primary to safety ground 2.5KV/min
Secondary to safety ground 2.5KV/min



Insulation Resistance

Primary to secondary DC 2500V>500 megohm
Primary to safety ground DC 2500V>500 megohm
Secondary to safety ground DC 2500V>500 megohm
Induction Withstand Voltage Test 125Hz/800V/min
Ground Resistance 25A<100milliohm
Cooling Method Natural
Noise Grade <40dB
Temperature Rise < 115K
Impedance Voltage about 4%
Total Losses <5%
Efficiency >96%
Operating Temperature -25℃~40℃ (40℃ ,93% RH,56days)
Storage Temperature -25℃~100℃ (40℃ ,93% RH,56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process:

380V/230V/220V/120V Medical Single Phase Isolation Transformer Copper Winding 0

380V/230V/220V/120V Medical Single Phase Isolation Transformer Copper Winding 1

380V/230V/220V/120V Medical Single Phase Isolation Transformer Copper Winding 2



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
