Medical Isolation Transformer
>

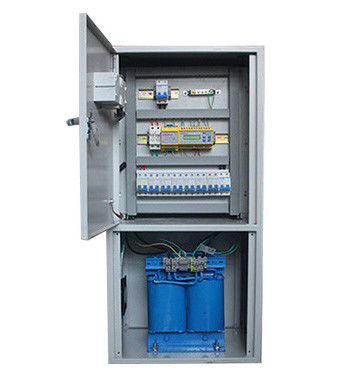

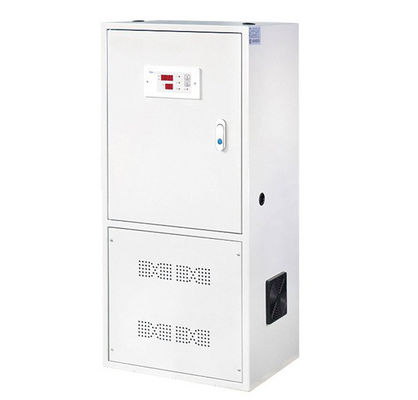

380V 220V Copper Wire Transformer

380V 220V Copper Wire Transformer

Brand Name: WINLEY
Model Number: 8KVA
MOQ: 1unit
Price: $25~$60000/Unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,IEC
Usage:
Hospital
Frequency:
50/60Hz
Material:
100% Copper Wire
Input Voltage:
380V/220V
Protection:
IP23
Terminal:
Finger Safe
Insulation:
Epoxy H Class
Silicon Steel:
0.30mm
Supply Ability:
1000units/month
Highlight:

380V 220V copper wire transformer

,

50/60Hz hospital isolation transformer

,

copper wire transformer IP23

Product Description

380V 220V Medical Isolation Transformer IP23 Hospital 50/60Hz





Feature



The three (single) phase medical special isolation transformer is a multi-coil isolation transformer with a special structure and manufacturing process.
1.The iron core of the product is laminated with imported low-loss and ultra-thin cold-rolled silicon steel sheets, with low loss.
2.High-temperature-resistant and high-insulation composite materials are used between the windings and double insulation treatment, and the insulation level is H.
3.Primary and secondary coils An electrostatic shielding screen is designed between the two windings to reduce electromagnetic interference and leakage hazards between the two windings.





Main technical data:

Parameters:
Product Name Medical isolation transformer
Product Model HDB / IT
Winding Material Enameled copper wire
Capacity 3.15KVA~10KVA
Input Voltage 220V/230V/380V/Customized
Output Voltage 220V/230V/380V/Customized
Frequency 50-60Hz
Insulation Class F / H
Protection Class IP 00 (construction type: open) / IP23 (enclosure included)



Withstand Voltage Test

Primary to secondary 2.5KV/min
Primary to safety ground 2.5KV/min
Secondary to safety ground 2.5KV/min



Insulation Resistance

Primary to secondary DC 2500V>500 megohm
Primary to safety ground DC 2500V>500 megohm
Secondary to safety ground DC 2500V>500 megohm
Induction Withstand Voltage Test 125Hz/800V/min
Ground Resistance 25A<100milliohm
Cooling Method Natural
Noise Grade <40dB
Temperature Rise < 115K
Impedance Voltage about 4%
Total Losses <5%
Efficiency >96%
Operating Temperature -25℃~40℃ (40℃ ,93% RH,56days)
Storage Temperature -25℃~100℃ (40℃ ,93% RH,56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!



Production process:

380V 220V Copper Wire Transformer 0



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
