NEMA 3 Phase Isolation Transformer

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: 500KVA
Minimum Order Quantity: 1unit
Price: $500~$60000/Unit
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 1000units/month
Detail Information
Usage: Isolation Voltage: 480V/440V/380V/220V
Material: Copper/Aluminum Enclosure: NEMA 3R
Symbol: Dyn1/Yd Steel: 0.30mm Thickness
Frequency: 50/60Hz/customize Standard: IEC Or Equal
High Light:

NEMA 3 phase isolation transformer

,

Copper Aluminum isolation transformer

,

500KVA 3 phase isolation transformer


Product Description

500KVA NEMA 3R Phase Isolation Transformer Copper Aluminum



Features



1) Brand new oriented or non-oriented cold rolled silicon steel sheet.

2) Terminal block: High temperature resistance and excellent flame retardant.

3) Bobbin: Qualified nylon material,high temperature resistance,good flame retardancy.

4) H class enameled wire,temperature resistance up to 220℃.

5) Whole product using vacumn impregnation process by H class varnish.


Main data

Product Name Three phase isolation transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V or customized
Output Voltage 380V or customized
Frequency 50/60Hz
Connection Type DYN11/YYN0
Insulation Level F/H
Enclosures Protection Level IP00 or higher
Pressure-tight Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process

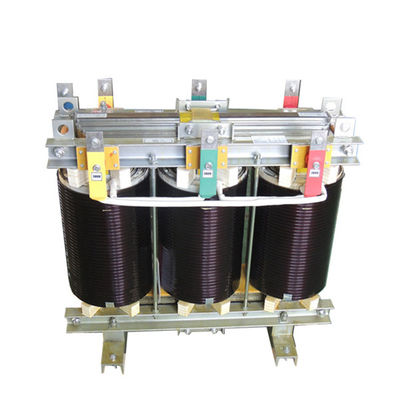

NEMA 3 Phase Isolation Transformer 0

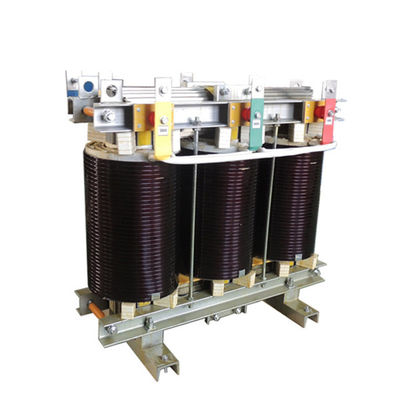

NEMA 3 Phase Isolation Transformer 1
