Name: Dyn1 Cast Resin Transformer Copper
Brand: Xiamen Winley Electric Co.,Ltd
SKU: 630KVA
Price: 30,250.00 USD
Availability: InStock

Brand Name:	WINLEY
Model Number:	630KVA
MOQ:	1unit
Price:	$500~$60000/Unit
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Vector Group:

Dyn1

Primary Voltage:

12.47KV

Secondary Voltage:

480Y/277V

Coil Structure:

Toroidal

Type:

Dry Type

Cooling Method:

Air Cooling

Insulation:

B/F/H

Usage:

Power

Supply Ability:

1000units/month

Highlight:

Dyn1 Cast Resin Transformer

Cast Resin Transformer 12.47KV

630KVA dry type transformer

Product Description

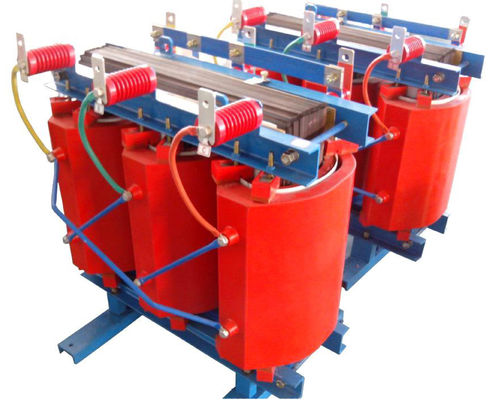

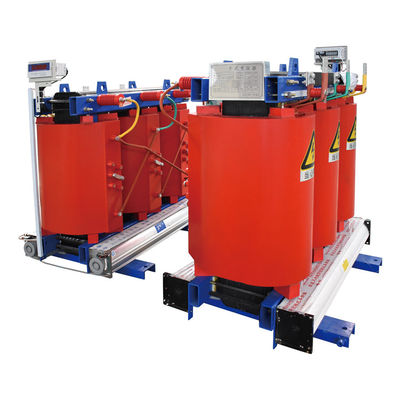

630KVA Dyn1 Cast Resin Transformer Copper 12.47KV 480Y/277V

Features

HV terminals:

Variable arrangements,for optional station design.HV tapping links for adjustment to system conditions,reconnectable in de-energized state.

HV Winding:

Consisting of vacumn-potted single foil-type copper coils.

LV Winding:

Made of copper strip. Turns firmly glued together by means of insulating sheet wrapper material.

Specification

Dyn1 Cast Resin Transformer Copper 0

Dyn1 Cast Resin Transformer Copper 1

Dyn1 Cast Resin Transformer Copper 2

FAQ

Q: How do transformers been shipped?

A: Transformers always been delivered by ship,train or truck for oversea.

Q: Can your product be customerized?

A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?

A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?

A: Yes. It’s available. We are responsible for each set transformer’s testing.

Q: Do you assign engineer for after-sale service?

A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
