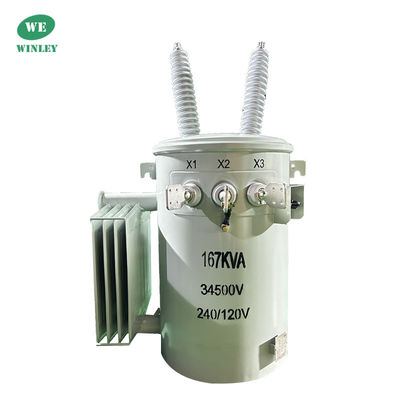

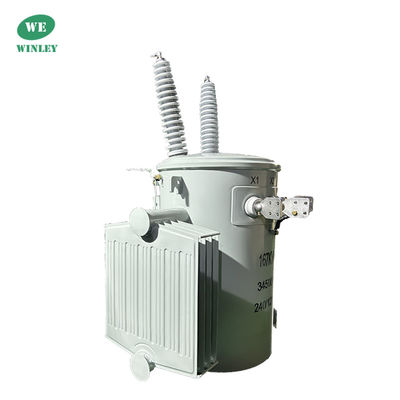

167Kva Single Phase Pole Mounted Transformer Oil Immersed 34.5KV To 240V ANSI IEEE Standards Power Distribution Transformer

Brand Name:	WINLEY
Model Number:	D-167/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Pole Mounted Transformer

Capacity:

167 KVA Or Customized

Primary Voltage:

34500V Or Customized

Secondary Voltage:

120/240V Or Customized

200 KV

Frequency:

50Hz/60Hz

Winding Material:

Copper/Aluminium

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

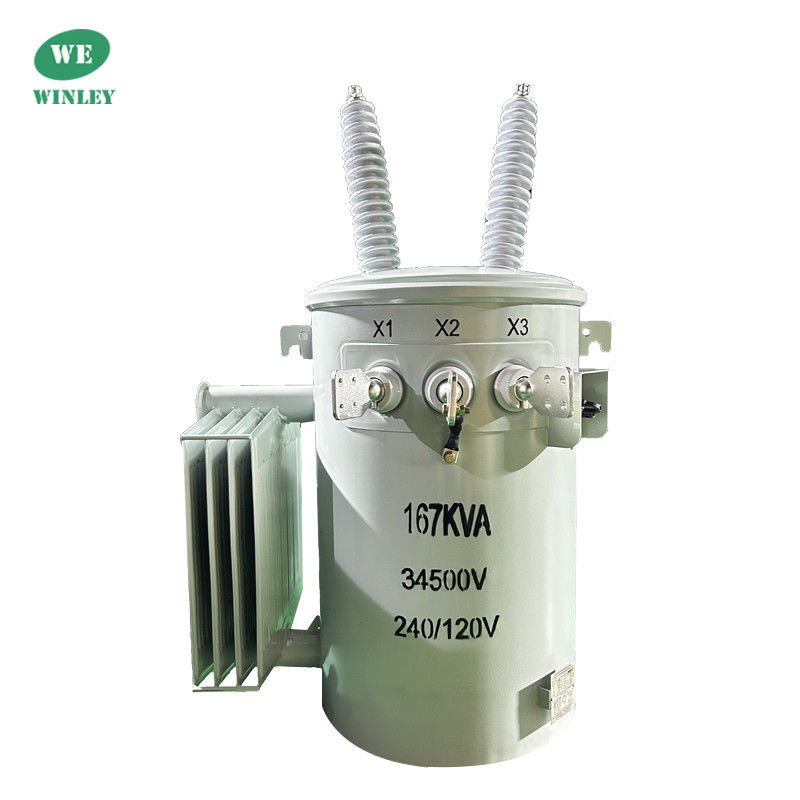

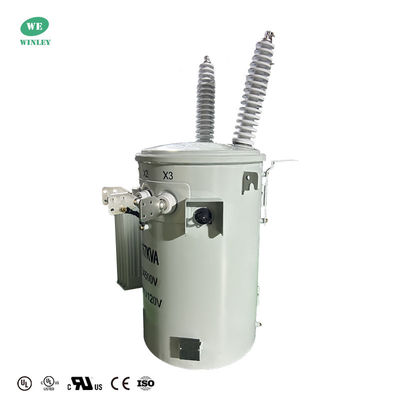

167Kva Single Phase Pole Mounted Transformer Oil Immersed 34.5KV To 240V ANSI IEEE Standards Power Distribution Transformer

WINLEY Electric's single phase pole mounted transformers available in ratings from 10-333 kVA.With voltage ratings up to 34.5 kV,Meeting ANSI/IEEE C57, IEC60076 and other standards.Get a Quote in Minutes.

167Kva Single Phase Pole Mounted Transformer Oil Immersed 34.5KV To 240V ANSI IEEE Standards Power Distribution Transformer 0

Pole-mounted transformer factory photos

167Kva Single Phase Pole Mounted Transformer Oil Immersed 34.5KV To 240V ANSI IEEE Standards Power Distribution Transformer 1

Pole Mounted Transformer Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Transformer Configuration	Liquid Filled Pole Mounted
Phase	Single Phase
Capacity	167 KVA
Primary Voltage	34500V
Primary Voltage Switch	N/A
Primary Voltage Class	35 kV Class
Primary Phasor	Delta
Primary BIL	200 kV
Secondary Voltage	120/240V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material	Copper

Pole-mounted transformer Standard Features

Lifting lugs
Arrester mounting pads
High-voltage porcelain bushing(s) with eyebolt terminals
Low voltage bushing insulators are available in fiberglass reinforced polyester material or porcelain (both eyebolt and spade terminals)
Low-voltage neutral grounding strap (furnished on 10 – 50 kVA single HV bushing units)
ANSI support lugs (hanger brackets)
Cover has 15 kV dielectric insulation and increased resistance to corrosion. The cover is sloped 15°, preventing water from collecting and thereby reducing the chances of corrosion and leaking.
Self-venting and resealing cover that eliminates the need for an auxiliary pressure-relief device and offers increased safety through higher tank withstand
Wound core with step-lap joints for increased efficiency and lower noise levels.
Core/coil bolts in pads are 180° apart
Embossed low-voltage leads
Oil fill-plug
Cover ground-strap
Tank ground-pad
Primary protective link
Surge arrester
Secondary circuit breaker
Secondary breaker operating handle with emergency overload reset
Laser-etched, anodized, aluminum nameplate with bar-coded serial number

Pole-mounted transformer Technical drawings

167Kva Single Phase Pole Mounted Transformer Oil Immersed 34.5KV To 240V ANSI IEEE Standards Power Distribution Transformer 3

Pole-mounted transformer Specifications

Single-phase pole mounted transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Pole-mounted transformer Ratings

Meets/Exceeds DOE 2016 Efficiency Ratings
Meets/Exceeds CSA Efficiency Ratings
Complies with ANSI / IEEE C57 12.00
Complies with ANSI / IEEE C57 12.20
Complies with ANSI / IEEE C57 12.30
Complies with ANSI / IEEE C57 12.31
Complies with ANSI / IEEE C57 12.35
Complies with ANSI / IEEE C57.12.70
Complies with ANSI / IEEE C62.11
Complies with ANSI / IEEE C62.22
Complies with ANSI / IEEE C2
Complies with ANSI / IEEE C37.47
Complies with ANSI Z535.4
Complies with ASTM D3487
Complies with ASTM D6871
Complies with 10 CFR Part 431
Complies with CSA C2.206
Complies with CAN / CSA C50
Complies with CAN / CSA C233.1-87
Complies with CAN / CSA C802.1-13

Pole-mounted transformer Production process

167Kva Single Phase Pole Mounted Transformer Oil Immersed 34.5KV To 240V ANSI IEEE Standards Power Distribution Transformer 4

167Kva Single Phase Pole Mounted Transformer Oil Immersed 34.5KV To 240V ANSI IEEE Standards Power Distribution Transformer 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
