167Kva Pole Mounted Distribution Transformer Single Phase Step Down 12.47KV 2 Wire Oil Immersed IEEE Standard

Brand Name:	WINLEY
Model Number:	D-167/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Overhead Distribution Transformer

Capacity:

167 KVA

Primary Voltage:

7200/12470GrdY (2 Wire)

Secondary Voltage:

120/240V

Cooling Class:

ONAN; Self-Cooled

Winding Material:

Copper/Aluminium

Temperature Rise:

Efficiency:

Meet DOE 2016 Standard

Supply Ability:

1000set/month

Highlight:

167Kva Pole Mounted Distribution Transformer

2 Wire Pole Mounted Distribution Transformer

IEEE Standard Pole Mounted Distribution Transformer

Product Description

167Kva Pole Mounted Distribution Transformer Single Phase Step Down 12.47KV Oil Immersed IEEE Standard

WINLEY's single phase pole-mounted transformers are made in power ratings up to 333 kVA.High voltage up to 34.5 kV.

WINLEY's pole mounted transformer is designed and tested in accordance with standards including ANSI/CSA, IEEE c.57, and IEC60076 as applicable.

Single-phase cylinders are usually mounted directly on wooden or concrete poles for multi-scenario applications such as residential overhead distribution loads and light commercial loads, and are usually divided into conventional and CSP types

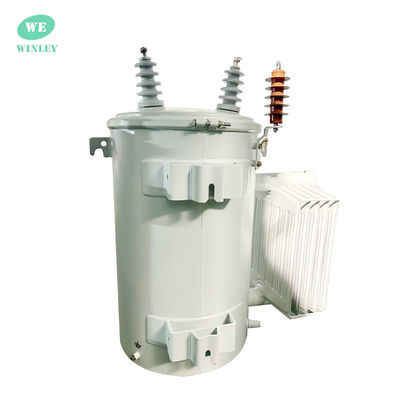

167Kva Pole Mounted Distribution Transformer Single Phase Step Down 12.47KV 2 Wire Oil Immersed IEEE Standard 0

Pole Mounted Transformer Main data

Phase	Single Phase
Capacity	167 KVA
Primary Voltage	7200/12470GrdY (2 Wire)
Primary BIL	95 kV
Secondary Voltage	120/240V (L-L-N)
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN; Self-Cooled
Efficiency	Meet DOE 2016 Standard
Winding Material	Copper
Ambient Temperature Rating	40°C
Efficiency	99.15%
No Load Loss (in watts)	+/- 445W
Full Load Loss (in watts)	+/- 1,820W

Pole Mounted Transformer structure

1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.
2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.
3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.
4. This item comes with a pressure relief valve that is capable of self-sealing.
5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.
6. The ground terminal on the tank is a ring bolt ground terminal.

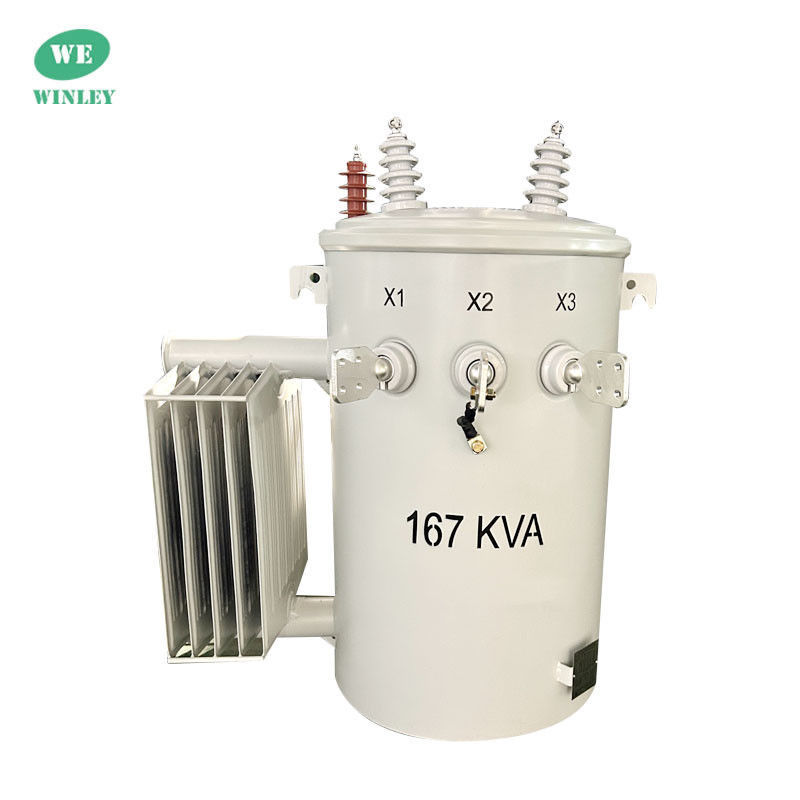

167Kva Pole Mounted Distribution Transformer Single Phase Step Down 12.47KV 2 Wire Oil Immersed IEEE Standard 1

Pole Mounted Transformer Drawing

167Kva Pole Mounted Distribution Transformer Single Phase Step Down 12.47KV 2 Wire Oil Immersed IEEE Standard 2

Pole Mounted Transformer Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
Rated Cap acity(kVA)	Voltage(v)	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43
500						99.49

Accessories

167Kva Pole Mounted Distribution Transformer Single Phase Step Down 12.47KV 2 Wire Oil Immersed IEEE Standard 3

Production process

167Kva Pole Mounted Distribution Transformer Single Phase Step Down 12.47KV 2 Wire Oil Immersed IEEE Standard 4

167Kva Pole Mounted Distribution Transformer Single Phase Step Down 12.47KV 2 Wire Oil Immersed IEEE Standard 5

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
