Single Phase Control Transformer
>

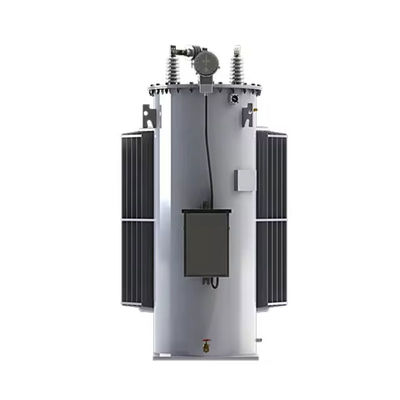

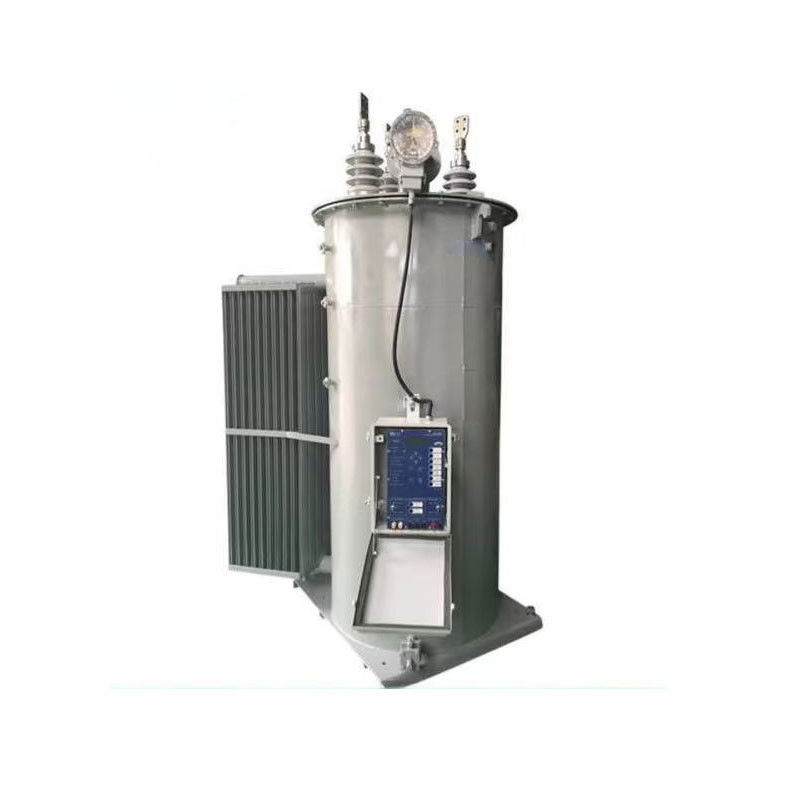

High Voltage Single Phase Automatic Voltage Regulator Pole Mounted Oil Immersed 13.8KV

High Voltage Single Phase Automatic Voltage Regulator Pole Mounted Oil Immersed 13.8KV

Brand Name: WINLEY
Model Number: DR-665/15
MOQ: 1unit
Price: $1000-$10000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE,ISO
Phase:
Single Phase
Capacity:
665Kva Or Customized
Frequency:
50/60Hz
Rated Voltage:
13.8KV Or Customized
Coil:
Toroidal
Cooling:
ONAN/KNAN
Usage:
Power, Outdoor,stabilizers
Coil Number:
Autotransformer
Supply Ability:
1000set/month
Highlight:

13.8KV Single Phase Automatic Voltage Regulator

,

Automatic Voltage Regulator 13.8KV

,

Pole Mounted Automatic Voltage Regulator

Product Description

High Voltage Single Phase Automatic Voltage Regulator pole mounted oil immersed 13.8KV





Summarization



The automatic voltage regulator is a single phase oil immersed auto-transformer with controller and gathering sampling of voltage ¤t signal, on load tap charger controlling device to achieve gird more efficient from adjust the load character by increase and decrease the voltage.





Standard Features


• Position indicator with ADD-AMP adjustment
• Control box
• Tap changer with motor and power supply
• Oil drain valve with sampling device
• Automatic pressure relief device
• Lifting lugs
• Nameplates
• High-creep porcelain bushings
• Oil sight gauge
• Pole mounting brackets
• Control cabinet with removable front panel
• Conformally coated circuit boards
• MOV-type external series arresters.



High Voltage Single Phase Automatic Voltage Regulator Pole Mounted Oil Immersed 13.8KV 0



Specification



Voltage(kV) Load Current(Amperes) KVA
2.5kV 200, 300, 400, 500, 668, 1000, 1332, 1665 50, 75, 100, 125, 167, 250, 333,416
60kV BIL
5.0kV 100, 150, 200, 250, 334, 500, 668, 833 50, 75, 100, 125, 167, 250, 333, 416
75kV BIL
7.62kV 100, 150, 219, 328, 428, 438, 546, 656, 875, 1093 76, 114, 167, 250, 333, 416, 500, 667, 833
95kV BIL
13.8kV 100, 150, 200, 300, 400, 483, 604 138, 207, 276, 414, 552, 667, 833
95kV BIL
19.92kV 50, 100, 167, 200, 335, 418, 502 100, 200, 333, 400, 667, 833, 1000
150kV BIL









Production process



3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
