| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | DG-3KVA |
| Minimum Order Quantity: | 10units |
| Price: | $20-$8000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 10000units/month |
| Material: | Copper Wire | Primary Voltage: | 220V |
|---|---|---|---|
| Secondary Voltage: | 110V | Type: | Single Phase Step Down Transformer |
| Temperature Rise: | ≤125K | Coil Structure: | EI |
| Phase: | Single Phase | Winding Material: | Alum/Copper |
| High Light: | 220V Machine Tool Control Transformer,110V Machine Tool Control Transformer,3kVA Machine Tool Control Transformer |
||

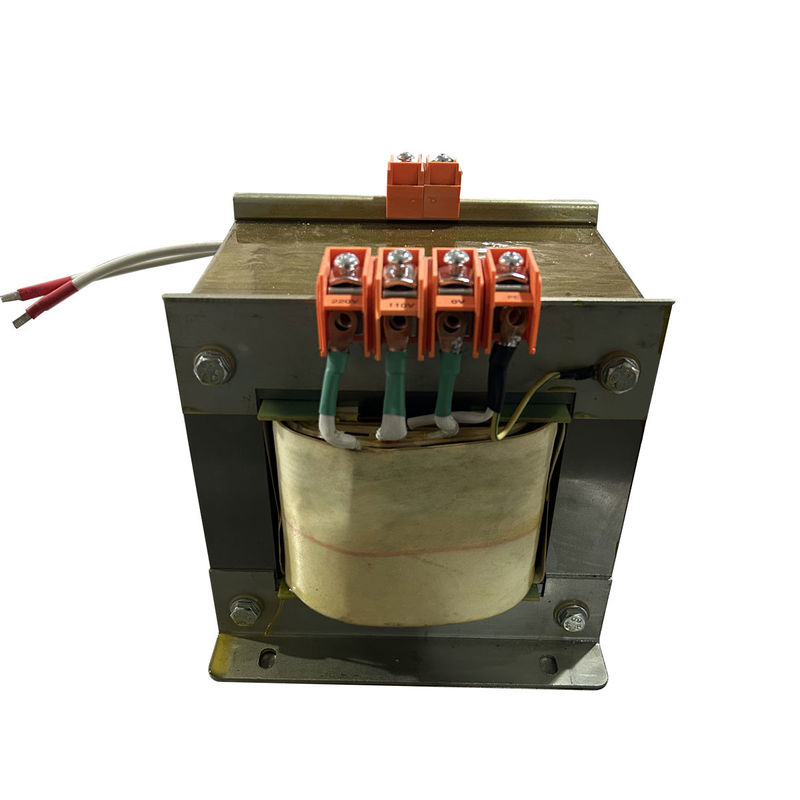

2000VA Copper wire Single Phase Control Transformer IP00 380V/220V
1.General
This series of machine tool control transformer is suitable for circuit of AC 50Hz-60Hz and input voltage lower than 660V, it can be used as control power supply for general electrical applicances such as various machine tools and mechanical equipment, it also can be used as power supply for losal lighting and indicator lamps.
As the substitute for common control transformer, this series of transformer adpopts imported materials and advanced technology, it has advantages of reliable operation, low dissipation of energy, compact volume, safe wiring, wide applications, etc.
2.Technical parameters
| No. | Description | DG-3KVA |
| 1 | Model | DG-3KVA |
| 2 | Name | Single-phase Dry type transformer |
| 3 | Rated power | 3KVA |
| 4 | Input voltage | 110V with 1x5% FCAN and 2x5% FCBN |
| 5 | Input current | 27.2A |
| 6 | Output voltage | 220V |
| 7 | Output current | 13.6A |
| 8 | Phase | Single |
| 9 | Frequency | 60Hz |
| 10 | Insulation class | C |
| 11 | Withstand voltage test |
Primary to secondary 2500V/60S Primary to grounding 2500V/60S Secondary to grounding 2500V/60S |
| 12 | Insulation resistance |
Primary to secondary Primary to grounding >100MΩ Secondary to grounding >100MΩ |
| 13 | Induced withstand voltage | 125Hz/Double voltage/min |
| 14 | Grounding resistance | 25A<100mΩ |
| 15 | Cooling method | Air cooling |
| 16 | Ratio | <3% |
| 17 | Temperature rise | <150℃ |
| 18 | Overall dimensions(AxBxC) | 300x300x400mm |
| 19 | Weight | 45Kg |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
