| Brand Name: | WINLEY |
| Model Number: | BK-1000VA |
| MOQ: | 100units |
| Price: | $20-$8000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

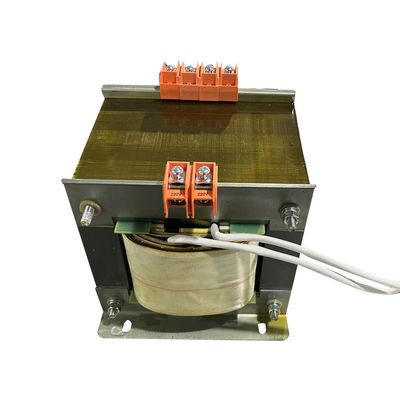

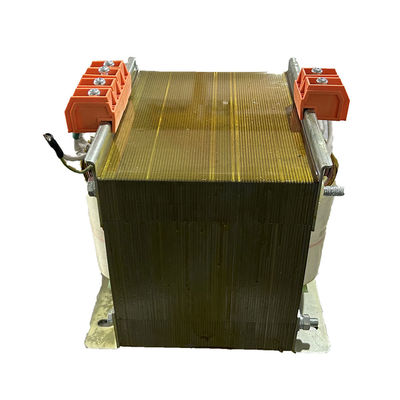

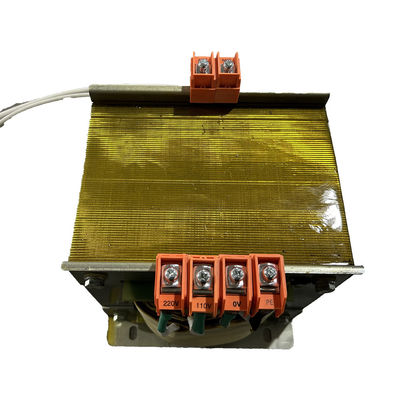

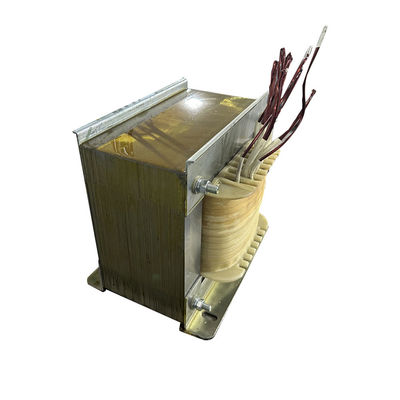

BK 1000va Control Transformer 220v to 12v AUTOTRANSFORMER 380V / 220 / 110V
Feature
1). The control transformer can easily obtain the appropriate voltage, and can also change the voltage of the alternating current and change the impedance at the same time.
2). When the design power is not exceeded, the control transformer can also change the current.
3). In different environments, the purpose of the transformer is also different, and it also has the effect of preventing interference.
Structure:
■ Square shape, special plastic connection board and steel copper coil inside.
■ BK series steel copper coils are Cold-rolled Square shape.
■ BKC series steel copper coil are imported material,coil roller into "C" shape,which do effect on reducing noise and consumption.
Drawing
Specification
| Product Name | Single phase isolation transformer |
| Product Model | BK-100VA |
| Winding Material | Enameled copper wire |
| Capacity | 100VA |
| Input Voltage | 230V(Can be customized) |
| Output Voltage | 24V(Can be customized) |
| Frequency | 50/60Hz |
| Connection Type | Finger safe Terminals |
| Insulation Level | F |
| Enclosures Protection Level | IP00 or higher |
| Withstand voltage Test | 1500V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz/830V/60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤80K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
