100KVA Dry Type Three Phase Electric Transformer Step Up Step Down 380V 240V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SG-100KVA
Minimum Order Quantity: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 1000units/month
Detail Information
Usage: Power Phase: Three
Primary Voltage: Customized Secondary Voltage: Customized
Coil: Copper Winding Capacity: 100VA-5000KVA
Warranty: 2 Years Efficiency: >98 %
High Light:

240V Dry Type Electric Transformer


100KVA Dry Type Electric Transformer


3Phase Dry Type Electric Transformer

Product Description

Dry Type Transformer 380V 240V 100KVA 3 Phase Transformer Step Up Step Down Electric Transformer





Compared with other voltage stabilizers, it has the advantage of large capacity, high efficiency, no wave distortion, stable voltage adjustment, suitability for kinds of loads, bearing instantaneous overload, working continually for long time, as well as free transferring between manual control and automatic control, etc, besides, the three phase voltage stabilizer is provided with protection against over-voltage, over current, phase failure and protection for phase sequence and has following merits: small volume, light weight, convenient installation and reliable running and so on.

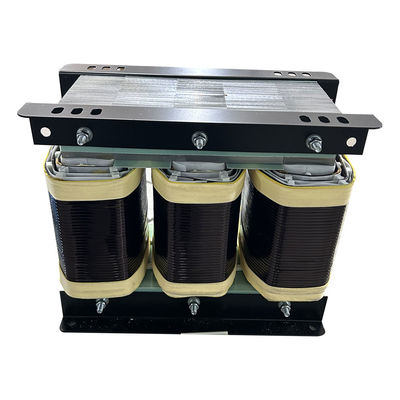

100KVA Dry Type Three Phase Electric Transformer Step Up Step Down 380V 240V 0


​Silicon Steel Sheet

Cold-rolled silicon steel sheethas excellent magnetic permeability

Copper Coil

Full copper coil is more

efficient and durable

Mounting Bracket

Strong mounting bracket




Phase Three phase
Capacity 0.5KVA-2000KVA
Input voltage 380V .660V.440V.220V or Customized
Output voltage 220V.1140V.690V.660V.440V. 415V.400V.380V .220V.200V.110V or Customized
Output voltage accuracy ±1%
Voltage change rate ≤1.5%
Output waveform distortion No distortion (compared to the input waveform)
Insulation class Class F, Class H; IP 00, IP20 etc.
Working efficiency ≥98%
Applicable frequency 50/60Hz
Connection method Y/D or customized
Overload capability More than 1.2 times of the rated load to work for 4 hours
Sound level ≤50dB(within 1m)
Temperature rise ≤60
Insulation resistance ≥150MΩ
Service life 30Years
Working environment Temperature: -20~+45, Humidity: ≤95% RH no condense
Installation environment Non-corrosive gas and conductive dust
Standard VDE0550, IEC439, JB5555, GB226
Cooling method AN/AF


Production process

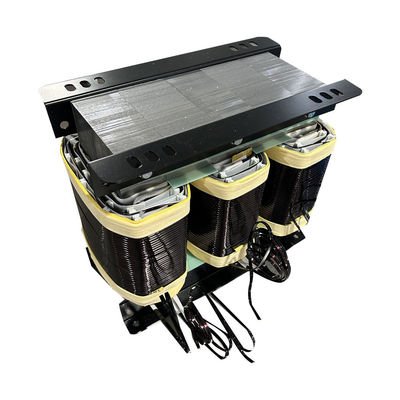

100KVA Dry Type Three Phase Electric Transformer Step Up Step Down 380V 240V 1

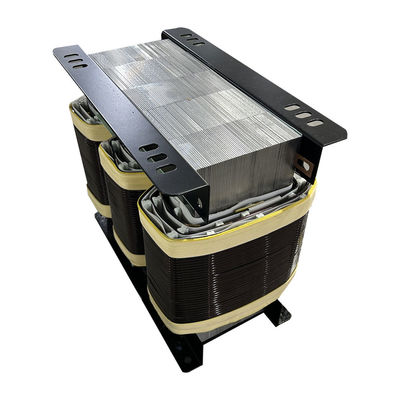

100KVA Dry Type Three Phase Electric Transformer Step Up Step Down 380V 240V 2




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
