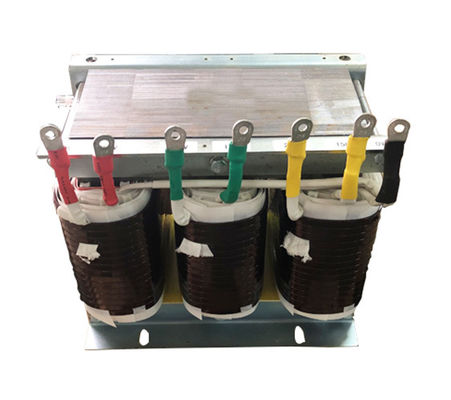

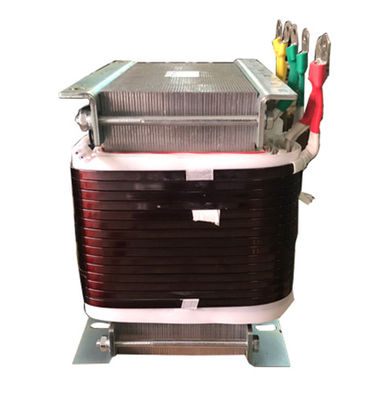

25KVA Lead Wire Three Phase Auto Transformer 380V/240V F/H Class
Feature:
(1) Since the calculation of the autotransformer is less than the rated capacity, under the same rated capacity, the main size of the autotransformer is smaller, and the effective materials (silicon steel, wires and structural materials (steel) are reduced accordingly. The effective materials are reduced to male the copper loss and iron loss are also reduced correspondingly, so the efficiency of the autotransformer is higher.At the same time, due to the reduction of the main size and the reduction of the quality, a single transformer with a larger capacity can be manufactured under allowable transportation conditions.
(2) Since the short-circuit impedance per unit value of the autotransformer is smaller than that of the double-winding transformer, the voltage change rate is smaller, but the short-circuit current is larger.
Specification:
| Type | Dry Type | ||
| Vacuum Pressure Impregnation | |||
| Autotransformer | |||
| Rated Power | Upto 5000KVA | ||
| Input | Voltage | Rated Voltage ≤ 1000V | |
| Current | Rated power/ Input Voltage / 1.732 | ||
| Tap | None/Customizable | ||
| Connection | Delta/Wye | ||
| Frequency | 50/60Hz | ||
| Phase Number | Single/Three | ||
| Output | Voltage | Rated Voltage ≤ 1000V | |
| Current | Rated power/ Output Voltage / 1.732 | ||
| Tap | None/Customizable | ||
| Connection | Delta/Wye | ||
| Frequency | 50/60Hz±5% | ||
| Phase Number | Single/Three | ||
| Vector Group | Yyn0/Dyn11 | ||
| Impedance Voltage | 4% | ||
| Efficiency | ≥98% | ||
| Duty Cycle | 100% Continuous | ||
| Winding Material | Aluminum/Copper | ||
| No Load Current | <4% | ||
| Display | Analog Voltmeter | ||
| Insulation Class | F/H | ||
| Insulation Resistance | ≥10MΩ | ||
| Withstand Voltage | 2500V, 1 Minute, No Flashover and Damage | ||
| Coil Temperature Rise | ≤120K | ||
| Cooling Method |
Natural Convection (AN) Forced Air (AF) |
||
| Working Environment | Ambient Temperature: -10℃ to +45℃ | ||
| Relative Humidity: ≤95% (non-condensing) | |||
| Altitude: ≤1000m | |||
| Reference Dimensions | Customizable | ||
| Protection Degree | Indoor IP20 (NEMA 1) | Outdoor IP54 (NEMA 3) | |
| Standards | In Accordance with IEC and EN | ||
