Brand Name: | WINLEY |
Model Number: | OSG-30KVA |
MOQ: | 1unit |
Price: | $20-$8000 |
Packaging Details: | Plywood case |
Payment Terms: | T/T |

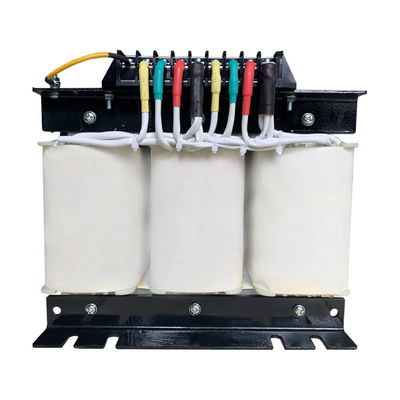

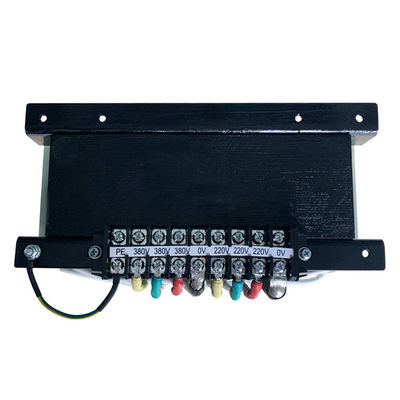

30KVA EI/Square Type Three Phase Auto Transformer 380V/220V Air Cooling
Feature:
1. Ambient air temperature; minimum air temperature:-40℃.
2. Air relative humidity: The average monthly maximum relative humidity of the wettest month is 90%, and the monthly average minimum temperature of the month is 25℃, taking into account the condensation on the surface of the product due to temperature changes.
3. A place without significant shaking and shock vibration.
4. There is no explosion hazard in the medium, and there is no gas and dust (including conductive dust) in the medium that can corrode the metal and damage the insulation.
5. In a place where there is no rain or snow.
Specification:
Type | Dry Type | ||
Vacuum Pressure Impregnation | |||
Autotransformer | |||
Rated Power | Upto 5000KVA | ||
Input | Voltage | Rated Voltage ≤ 1000V | |
Current | Rated power/ Input Voltage / 1.732 | ||
Tap | None/Customizable | ||
Connection | Delta/Wye | ||
Frequency | 50/60Hz | ||
Phase Number | Single/Three | ||
Output | Voltage | Rated Voltage ≤ 1000V | |
Current | Rated power/ Output Voltage / 1.732 | ||
Tap | None/Customizable | ||
Connection | Delta/Wye | ||
Frequency | 50/60Hz±5% | ||
Phase Number | Single/Three | ||
Vector Group | Yyn0/Dyn11 | ||
Impedance Voltage | 4% | ||
Efficiency | ≥98% | ||
Duty Cycle | 100% Continuous | ||
Winding Material | Aluminum/Copper | ||
No Load Current | <4% | ||
Display | Analog Voltmeter | ||
Insulation Class | F/H | ||
Insulation Resistance | ≥10MΩ | ||
Withstand Voltage | 2500V, 1 Minute, No Flashover and Damage | ||
Coil Temperature Rise | ≤120K | ||
Cooling Method |
Natural Convection (AN) Forced Air (AF) |
||
Working Environment | Ambient Temperature: -10℃ to +45℃ | ||
Relative Humidity: ≤95% (non-condensing) | |||
Altitude: ≤1000m | |||
Reference Dimensions | Customizable | ||
Protection Degree | Indoor IP20 (NEMA 1) | Outdoor IP54 (NEMA 3) | |
Standards | In Accordance with IEC and EN |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
