| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | OSG-25KVA |
| Minimum Order Quantity: | 1unit |
| Price: | $20-$8000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units/month |
| Usage: | Motor | Voltage: | 100V/95V/90V/80V |
|---|---|---|---|
| Coil Structure: | Toroidal | Coil Number: | 2 Or 3 Windings |
| Type: | Step Up | Material: | Copper Or Aluminum |
| Cooling Method: | Air Cooling | Frequency: | 50Hz Or 60Hz |
| High Light: | 25KVA Three Phase Auto Transformer,Step Up Auto Transformer 100V 90V,Three Phase Auto Transformer 100V 95V |
||

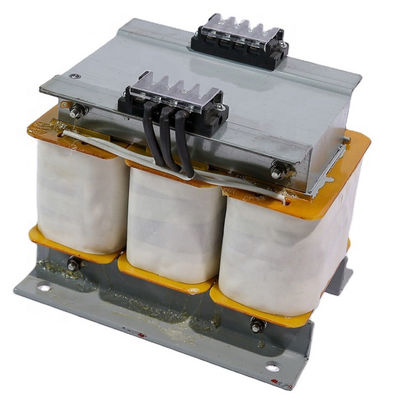

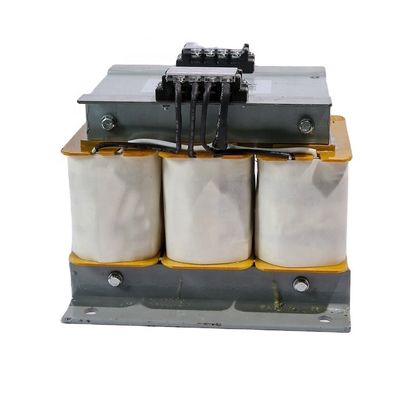

25KVA Step Up Three Phase Auto Transformer Motor 100V/95V/90V/80V
Feature:
Three-phase autotransformer is a kind of autotransformer, it can have the same connection group as the three-phase transformer, but there is electrical connection between the different coils. Mainly used in high-power transmission and transformation occasions.
Autotransformer is a single-turn transformer. The primary and secondary sides share a winding winding, and its transformation ratio is fixed. Compared with the general transformer of the same capacity, it has the advantages of simple structure, material saving, and small size. It is especially economical when the transformation ratio is close to 1. Therefore, it is used more in high-power transmission transformers with similar voltages. In addition, it is widely used in step-down starter boxes for asynchronous motors above 10kW.
Specification:
| Type | Dry Type | ||
| Vacuum Pressure Impregnation | |||
| Autotransformer | |||
| Rated Power | Upto 5000KVA | ||
| Input | Voltage | Rated Voltage ≤ 1000V | |
| Current | Rated power/ Input Voltage / 1.732 | ||
| Tap | None/Customizable | ||
| Connection | Delta/Wye | ||
| Frequency | 50/60Hz | ||
| Phase Number | Single/Three | ||
| Output | Voltage | Rated Voltage ≤ 1000V | |
| Current | Rated power/ Output Voltage / 1.732 | ||
| Tap | None/Customizable | ||
| Connection | Delta/Wye | ||
| Frequency | 50/60Hz±5% | ||
| Phase Number | Single/Three | ||
| Vector Group | Yyn0/Dyn11 | ||
| Impedance Voltage | 4% | ||
| Efficiency | ≥98% | ||
| Duty Cycle | 100% Continuous | ||
| Winding Material | Aluminum/Copper | ||
| No Load Current | <4% | ||
| Display | Analog Voltmeter | ||
| Insulation Class | F/H | ||
| Insulation Resistance | ≥10MΩ | ||
| Withstand Voltage | 2500V, 1 Minute, No Flashover and Damage | ||
| Coil Temperature Rise | ≤120K | ||
| Cooling Method |
Natural Convection (AN) Forced Air (AF) |
||
| Working Environment | Ambient Temperature: -10℃ to +45℃ | ||
| Relative Humidity: ≤95% (non-condensing) | |||
| Altitude: ≤1000m | |||
| Reference Dimensions | Customizable | ||
| Protection Degree | Indoor IP20 (NEMA 1) | Outdoor IP54 (NEMA 3) | |
| Standards | In Accordance with IEC and EN | ||
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
