|Usage:||Power Equipment||Primary Voltage:||600V/480V|
|Cooling:||Air Cooling||Winding:||Copper Coil|
|Capacity:||Upto 5000KVA||Insulation:||H Class|
15KVA 3 phase auto transformer,
Air Cooling transformer 240Y 139V,
3 phase auto transformer 600V 480V

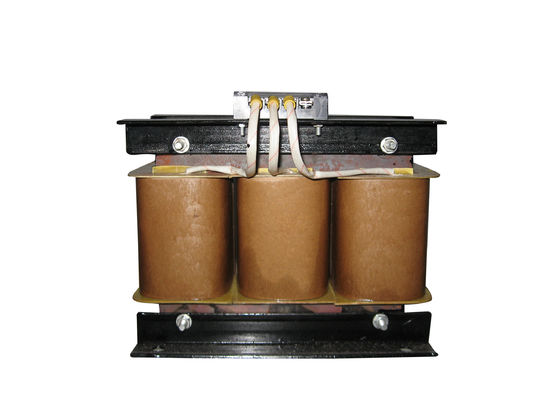

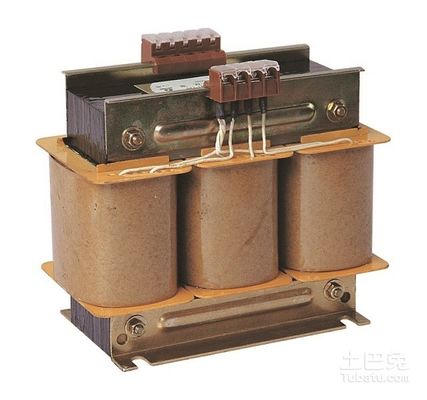

15KVA Power Equipment Three Phase Auto Transformer 600V/480V 240Y/139V
■ Three phase star connection with air self-cooled transformer.
■ Steel cores are three pillar steel core.
■ Phase coil is primary winding coil, inside installed temperature,protection switch should tandem connection in controlling circuit for prevent the coil temperature from overheat and burning out.
|Vacuum Pressure Impregnation|
|Rated Power||Upto 5000KVA|
|Input||Voltage||Rated Voltage ≤ 1000V|
|Current||Rated power/ Input Voltage / 1.732|
|Output||Voltage||Rated Voltage ≤ 1000V|
|Current||Rated power/ Output Voltage / 1.732|
|Duty Cycle||100% Continuous|
|No Load Current||<4%|
|Withstand Voltage||2500V, 1 Minute, No Flashover and Damage|
|Coil Temperature Rise||≤120K|
Natural Convection (AN)
Forced Air (AF)
|Working Environment||Ambient Temperature: -10℃ to +45℃|
|Relative Humidity: ≤95% (non-condensing)|
|Protection Degree||Indoor IP20 (NEMA 1)||Outdoor IP54 (NEMA 3)|
In Accordance with IEC and EN
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
