100kva Low Voltage 220v To 380v Step Up Isolation Control Transformer

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: CE,ISO
Model Number: BK-100
Minimum Order Quantity: 1unit
Price: $100-$10000
Packaging Details: Plywood case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 1000set/month
Detail Information
Model Number: BK Capacity: 100 KVA
Frequency: 50/60Hz Input Voltage: 380V / 220 / 110V(Customized)
Output Voltage: 127V/110V/36V/24V/12V/6V(Customized) Efficiency: ≥98%
Certification: CE, ISO Warranty: 2 Years
High Light:

Step Up Isolation Control Transformer

,

380v Industrial Control Transformer

,

100kva Isolation Control Transformer


Product Description

100kva Low Voltage 220v To 380v Step Up Isolation Control Transformer





Performance



BK transformers have the characteristics of small size, safe and reliable wiring, high protection level, good performance, etc., and can work effectively for a long time in the rated load.

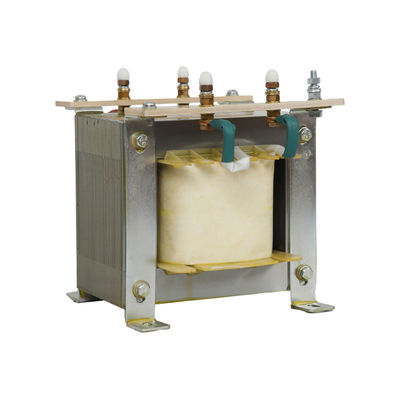

100kva Low Voltage 220v To 380v Step Up Isolation Control Transformer 0



Feature



1.Input voltage: 220V,380V or be customized
2.Output voltage: 6V,12V,110V or be customized
3.Capacity range: 25VA-100KVA above
4.Efficiency: ≥95%
5.Insulation class: B or above as customized
6.Type of cooling system: natural air drying or with fans cooling for IP20
7.Waveform distortion: no additional waveform distortion
8.Function: indication of input voltage, output voltage and current
9.Protection: over-current protection
10. Can operate itself without anybody attending for a long term
11.Electric strength: no breakdown or flashover phenomenon under power frequency sine voltage of 2000V for 1min
12.Overload capability: for 1min under two times of rated current



Specification





Model Rated capacity (VA) Primary voltage (V) Secondary voltage Outline size (mm) Hole distance for installation (mm) Installation hole (mm)
(V) Bmax Dmax Emax A C KxJ
JBK3-40 40 220, 380V or be customized 6.3,12,24,36,110,127,220,380V or be customized 82 78 92 56 52 5x9
JBK3-63 63 82 78 92 56 52 5x9
JBK3-100 100 86 92 95 64 69.5 5x9
JBK3-160 160 98 97 105 84 71.5 6x11
JBK3-250 250 98 110 105 84 85 6x11
JBK3-300 300 122 109 125 90 88 6x11
JBK3-400 400 122 113 125 90 92 6x11
JBK3-500 500 122 126 125 90 105 6x11
JBK3-630 630 152 110 150 130 90 8x14
JBK3-800 800 152 125 150 130 105 8x14
JBK3-1000 1000 230 170 156 160 142 7x14
JBK3-1600 1600 258 185 168 180 155 7x14
JBK3-2500 2500 285 210 175 210 175 7x14



Application



JBK3 series machine tool control transformer suitable for AC circuit of 50~60Hz,output rated voltage less than 220V,input rated voltage less than 500V,worked as control power supply for mechanical equipment and general electrical appliance and as power supply for work lighting and signal lamp.





Production process



3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 2

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 3

3150KVA Three Phase Dry Type Isolation Transformer NEMA3R 480V 208V 4



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
