Three Phase Isolation Transformer
>

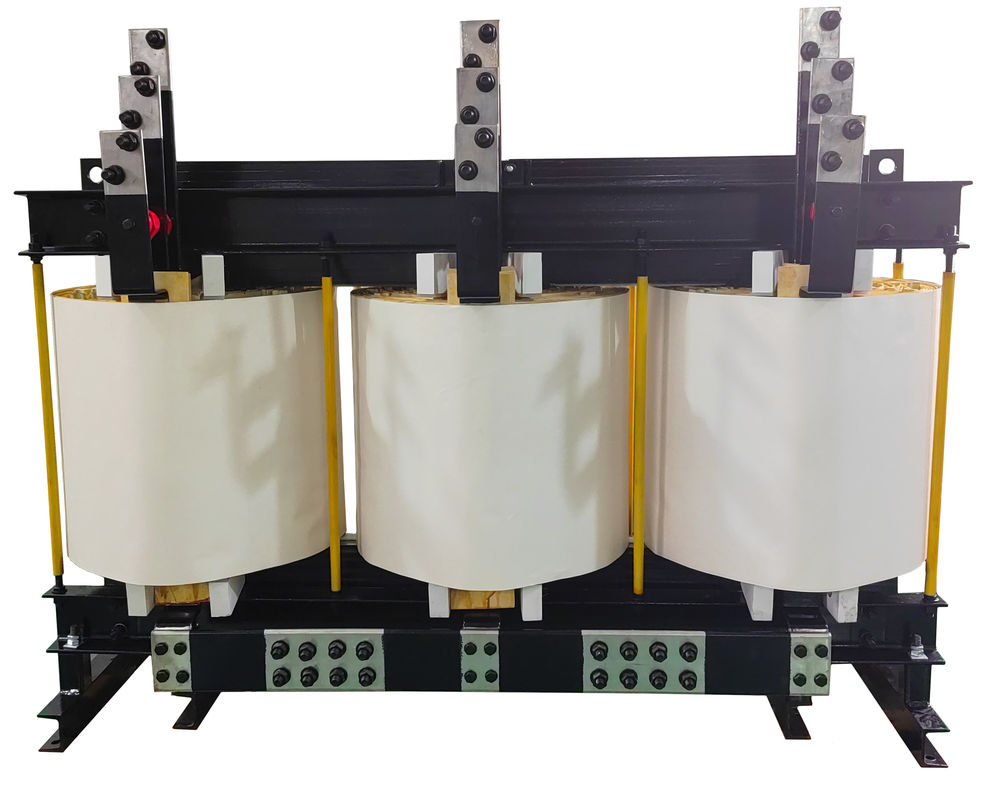

500KVA K-9 Three Phase Isolation Transformer 480V 415V Copper

500KVA K-9 Three Phase Isolation Transformer 480V 415V Copper

Brand Name: WINLEY
Model Number: SG-500KVA
MOQ: 1
Price: $1500-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE,UL
Usage:
Data Center
Coil Number:
Three Windings
Rated Capacity:
500KVA
Standard:
DOE2016
Material:
Copper
Voltage:
480V 415V
Insulation:
220 Degree
Type:
K9
Supply Ability:
1000set/month
Highlight:

Three Phase Isolation Transformer 480V

,

500KVA Copper Isolation Transformer

,

K9 Three Phase Isolation Transformer

Product Description

500KVA K-9 Three Phase Isolation Transformer 480V 415V Copper





Features

1) Core

The main material for the 0.27mm thick grain-oriented silicon steel, our guest rooms according to the requirements and conditions of use, choose the most suitable material, so that the transformer design to achieve the best performance.

2) Wire

By PEW, UEW, EIW, SEIW, FEAI enameled wire, and glass envelope, the temperature rating for the F-level (155 °C), H-level (180 °C), HC-level (200 °C), C-level (220 °C).


Specification
Product Name Three phase dry type transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V or customized
Output Voltage 380V or customized
Frequency 50/60Hz
Connection Type DYN11/YYN0
Insulation Level F/H
Enclosures Protection Level IP00 or higher
Pressure-tight Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO,UL
The technical parameter for reference only, for exactly technical information, please feel free to contact us!

Production process

Ventilated Type 3 Phase Isolation Transformer Copper Aluminium 0



Ventilated Type 3 Phase Isolation Transformer Copper Aluminium 1500KVA K-9 Three Phase Isolation Transformer 480V 415V Copper 2



FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
