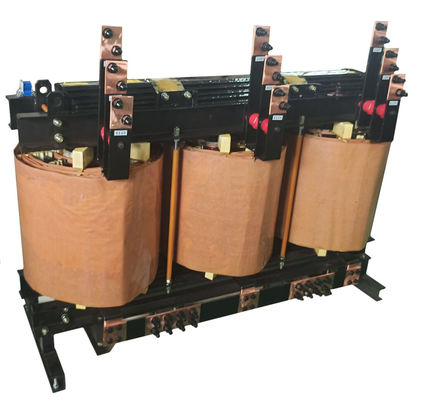

500KVA Three Phase Isolation Transformer 220degree 480V 208Y

Name: 500KVA Three Phase Isolation Transformer 220degree 480V 208Y
Brand: WINLEY
SKU: SG-500KVA
Price: 1500 USD
Availability: InStock
Rating: 5 (153 reviews)

Brand Name:	WINLEY
Model Number:	SG-500KVA
MOQ:	1
Price:	$1500-$150000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE,UL

Usage:

Industrial Equipment

Capacity:

500KVA

Insulation:

220 Degree

Primary Voltage:

480V

Secondary Voltage:

208Y

Frequency:

60Hz

Standard:

ANSI

Vector Group:

Dyn1

Supply Ability:

1000set/month

Highlight:

500KVA Three Phase Isolation Transformer

220degree Isolation Transformer

Three Phase Isolation Transformer 208Y

Product Description

500KVA Three Phase Isolation Transformer 220degree 480V 208Y

Features

1) Core

The main material for the 0.30mm thick grain-oriented silicon steel, our guest rooms according to the requirements and conditions of use, choose the most suitable material, so that the transformer design to achieve the best performance.

2) Wire

By PEW, UEW, EIW, SEIW, FEAI enameled wire, and glass envelope, the temperature rating for the F-level (155 °C), H-level (180 °C), HC-level (200 °C), C-level (220 °C).

Specification


			Product Name
			Three phase dry type transformer

			Product Model
			SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS

			Winding Material
			Enameled copper wire or enameled aluminum wire

			Capacity
			100VA~5000KVA

			Input Voltage
			415V or customized

			Output Voltage
			380V or customized

			Frequency
			50/60Hz

			Connection Type
			DYN11/YYN0

			Insulation Level
			F/H

			Enclosures Protection Level
			IP00 or higher

			Pressure-tight Test
			2500V/min

			Insulation Resistance
			>100MΩ

			Ground Resistance
			25A<100milliohm

			Induction Withstand Voltage Test
			125Hz / 830V / 60s

			Cooling Method
			Natural or air cooling

			Temperature Rise
			≤115K

			Transformation Ratio
			<3%

			Air Carrying Current
			<3%

			Impedance Voltage
			about 4.5%

			Total Losses
			4%

			Efficiency
			80%--99%

			Operating Temperature
			-15℃～40℃ (40℃, 90%R.H., 56days)

			Storage Temperature
			-25℃～100℃(40℃, 90%R.H., 56days)

			Certificate
			CE,ISO

			The technical parameter for reference only, for exactly technical information, please feel free to contact us!

Production process

FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
