70KVA Three Phase Isolation Transformer H Class 504V 320V 200V 80V 40V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: SG-70KVA
Minimum Order Quantity: 1
Price: $15-$60000
Packaging Details: Plywood case
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 1000unit per month
Detail Information
Usage: Power Coil Number: Three Windings
Primary Voltage: 504V Secondary Voltage: 320V 200V 80V 40V
Standard: ANSI,IEC Type: Dry-type
Material: Copper Cooling Method: AN
High Light:

504V Three Phase Isolation Transformer


70KVA H Class Isolation Transformer


Three Phase Isolation Transformer 40V

Product Description

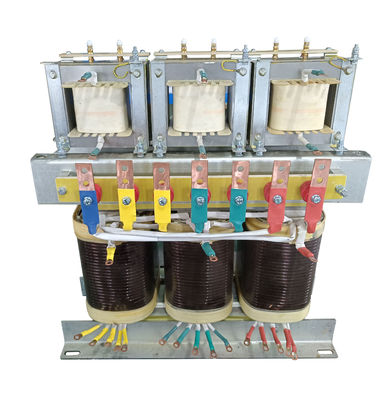

70KVA Three Phase Isolation Transformer H Class 504V 320V 200V 80V 40V




1) Precise meter accurately displays the output voltage.
2) Convenient for opening and repairing the transformer.
3) Omni-directional wheel make easy to move the transformer.
4) Power indicator light: Check working status any time.
5) Cooling fan:Cooling fan helps heat dissipating to extend the service life.
6) Heat dissipating grid: Increase efficiency of cooling.

Main data
Product Name Three phase dry type transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V or customized
Output Voltage 380V or customized
Frequency 50/60Hz
Connection Type DYN11/YYN0
Insulation Level F/H
Enclosures Protection Level IP00 or higher
Pressure-tight Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!
