| Brand Name: | WINLEY |
| Model Number: | SG-2.5KVA |
| MOQ: | 1 |
| Price: | $20-$60,000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

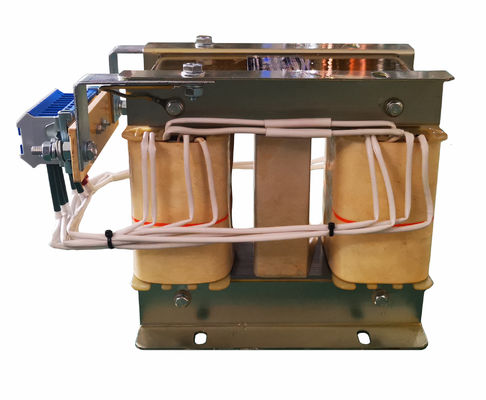

2500VA Three Phase Isolation Transformer 380V 400V AC 12.5A 4.5A
1. Feature
■ High reliability
The structure is reasonable, the efficiency is high, the waveform is not distorted, the use is convenient and reliable, and it can run for a long time. The performance indicators fully meet the requirements of the GB/IEC dry-type power transformer standard. It can be isolated from the main grid power supply, anti-impact, anti-interference, and anti-lightning.
2.Specification
| Product Name | Three phase dry type transformer |
| Product Model | SG-5KVA |
| Winding Material | Enameled copper wire |
| Capacity | 5KVA |
| Input Voltage | 450V/428V/405V |
| Output Voltage | 240Y/139V |
| Frequency | 50/60Hz |
| Connection Type | DYN1 |
| Insulation Level | F/H |
| Enclosures Protection Level | IP00 |
| Pressure-tight Test | 3500V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz / 830V / 60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤115K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 4.5% |
| Total Losses | 4% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
