Three Phase Auto Transformer
>
7KVA Dry Type Three Phase Auto Transformer 415V/200V Copper Wire

7KVA Dry Type Three Phase Auto Transformer 415V/200V Copper Wire

Brand Name: WINLEY
Model Number: OSG-7KVA
MOQ: 1unit
Price: $20-$8000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Type:
Dry Type
Primary Voltage:
415V
Secondary Voltage:
200V
Winding:
Copper Wire
Frequency:
50/60Hz
Standard:
IEC/AS
Coil Structure:
EI
Protection:
IP00
Supply Ability:
1000units/month
Highlight:

7KVA Three Phase Auto Transformer

,

Dry Type Auto Transformer Copper Wire

,

Three Phase Auto Transformer 415V 200V

Product Description

7KVA Dry Type Three Phase Auto Transformer 415V/200V Copper Wire





Feature:

1. High mechanical strength.

2. Low losses.

3. Environmentally friendly.

4. Easy installation.



Specification:

Type Dry Type
  Vacuum Pressure Impregnation
  Autotransformer
Rated Power Upto 5000KVA
Input Voltage Rated Voltage ≤ 1000V
  Current 100 * 1000 / Input Voltage / 1.732
  Tap None/Customizable
  Connection Delta/Wye
  Frequency 50/60Hz
  Phase Number Single/Three
Output Voltage Rated Voltage ≤ 1000V
  Current Rated power/ Output Voltage / 1.732
  Tap None/Customizable
  Connection Delta/Wye
  Frequency 50/60Hz±5%
  Phase Number Single/Three
Vector Group Yyn0/Dyn11
Impedance Voltage 4%
Efficiency ≥98%
Duty Cycle 100% Continuous
Winding Material Aluminum/Copper
No Load Current <4%
Display Analog Voltmeter
Insulation Class F/H
Insulation Resistance ≥10MΩ
Withstand Voltage 2500V, 1 Minute, No Flashover and Damage
Coil Temperature Rise ≤120K
Cooling Method

Natural Convection (AN)

Forced Air (AF)

Working Environment Ambient Temperature: -10℃ to +45℃
  Relative Humidity: ≤95% (non-condensing)
  Altitude: ≤1000m
Reference Dimensions Customizable
Protection Degree Indoor IP20 (NEMA 1) Outdoor IP54 (NEMA 3)
Standards In Accordance with IEC and EN

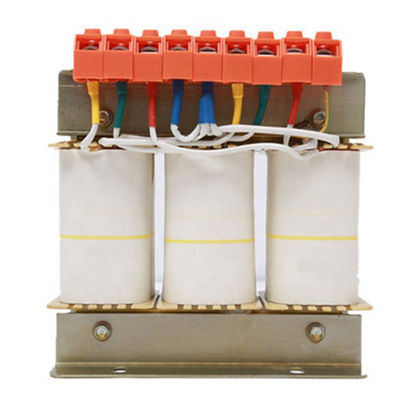

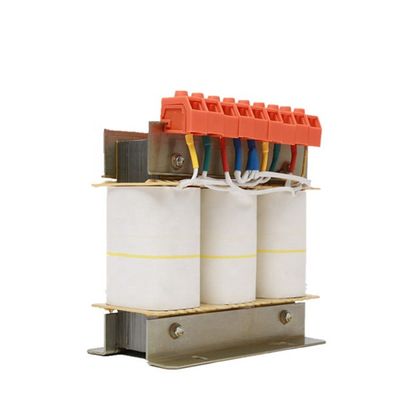

7KVA Dry Type Three Phase Auto Transformer 415V/200V Copper Wire 07KVA Dry Type Three Phase Auto Transformer 415V/200V Copper Wire 1



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
