3500VA Rectifier Single Phase Control Transformer AC To DC Air Cooling

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: BKZ-3500VA
Minimum Order Quantity: 50units
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 10000units/month
Detail Information
Usage: Rectifier Type: AC To DC
Frequency: 50Hz Or 60Hz Product Name: Low Voltage Rectifier Transformer
Material: Copper/Alumnium Insulation Class: H
Temperature Rising: ≤85℃ Cooling Method: Air Cooling
High Light:

3500VA Single Phase Control Transformer


3500VA AC To DC Transformer


Single Phase Control Transformer AC To DC

Product Description

3500VA Rectifier Single Phase Control Transformer AC To DC Air Cooling



1. Feature


The use of rectifier transformers is very widely.
1). For electrolysis (used to prepare aluminum and other metals by electrolysis).
2). For traction. It is used for DC grid power supply for mines and urban electric locomotives.
3). For transmission (used for power supply of DC motor in electric drive).
4). For direct current transmission.
5). For electroplating and electrical processing.
6). For excitation (synchronous motor excitation).
7). Used for electrostatic dust removal.



Product Name Single phase isolation transformer
Product Model DG-10KVA
Winding Material Enameled copper wire
Capacity 10kVA
Input Voltage 415V(Can be customized)
Output Voltage 415V(Can be customized)
Frequency 50/60Hz
Connection Type Finger safe Terminals
Insulation Level H
Enclosures Protection Level IP00 or higher
Withstand voltage Test 3000V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz/830V/60s
Cooling Method Natural or air cooling
Temperature Rise ≤80K
Transformation Ratio <3%
Air Carrying Current <3%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!

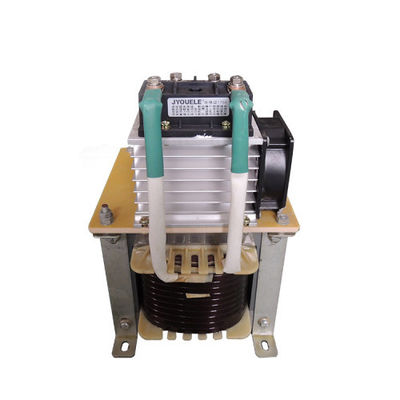

3500VA Rectifier Single Phase Control Transformer AC To DC Air Cooling 0

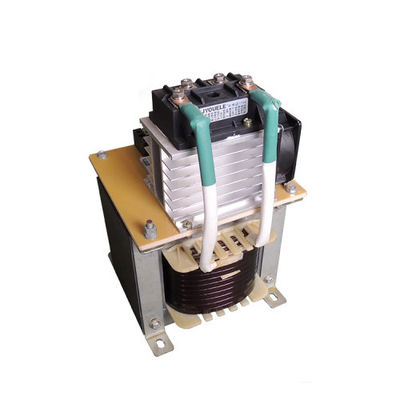

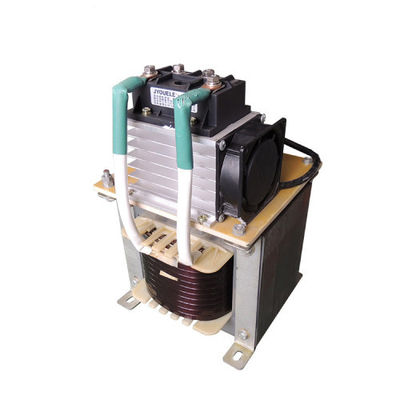

3500VA Rectifier Single Phase Control Transformer AC To DC Air Cooling 13500VA Rectifier Single Phase Control Transformer AC To DC Air Cooling 2




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
