| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE |
| Model Number: | DG-750VA |
| Minimum Order Quantity: | 50units |
| Price: | $20-$8000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 10000units/month |
| Primary Voltage: | 62.5V | Secondary Voltage: | 2.5V |
|---|---|---|---|
| Frequency: | 400Hz | Input Current: | 12A |
| Output Current: | 300A | Terminal: | Copper Busbar |
| Type: | High Current Transformer | Phase: | 1 Phase |
| High Light: | 12A voltage control transformer,750VA 300A single phase transformer,voltage control transformer 400Hz |
||

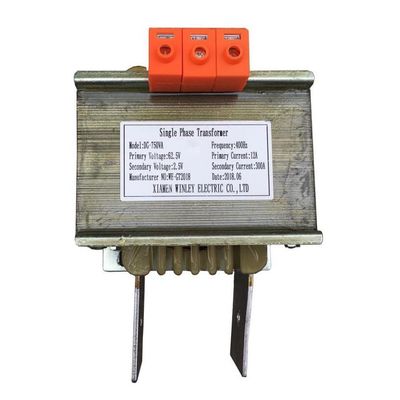

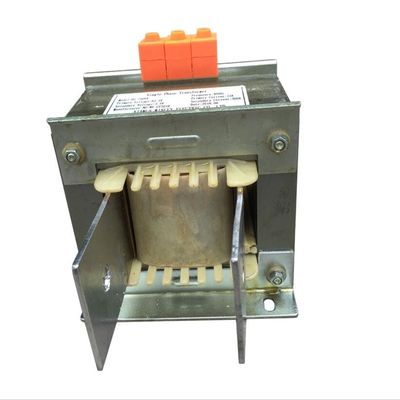

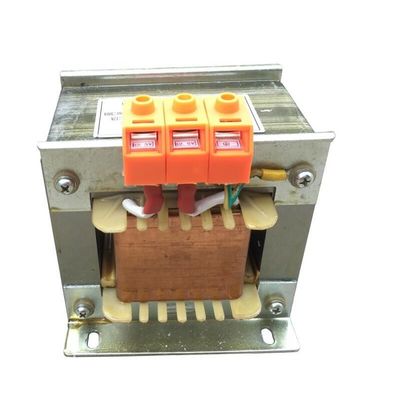

750VA 300A 12A Single Phase Control Transformer 400Hz 62.5V To 2.5V
1. Feature
1). Using a new 0.35mm thick low-loss silicon steel sheet, effectively reducing no-load loss.
2). Adopt HC grade (200℃) glass fiber covered wire to effectively reduce transformer load loss.
3). The use of polyester film high temperature resistant (220℃) insulation material greatly improves the product performance.
2.Specification
| Product Name | Single phase isolation transformer |
| Product Model | DG-10KVA |
| Winding Material | Enameled copper wire |
| Capacity | 10kVA |
| Input Voltage | 415V(Can be customized) |
| Output Voltage | 415V(Can be customized) |
| Frequency | 50/60Hz |
| Connection Type | Finger safe Terminals |
| Insulation Level | H |
| Enclosures Protection Level | IP00 or higher |
| Withstand voltage Test | 3000V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz/830V/60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤80K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
