50VA Inverter Use Single Phase Control Transformer Copper Foil Lead Wire

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: BK-50VA
Minimum Order Quantity: 100units
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 10000units/month
Detail Information
Usage: Inverter Use Winding Material: Copper Foil
Insulation Class: H Type: Customized
Turns: 56Turns Product Name: Inverter Use Transformer
Terminal: Lead Wire Temperature Rising: ≤50℃
High Light:

Single Phase Control Transformer Copper Foil


50VA power inverter transformer


Single Phase Control Transformer Lead Wire

Product Description

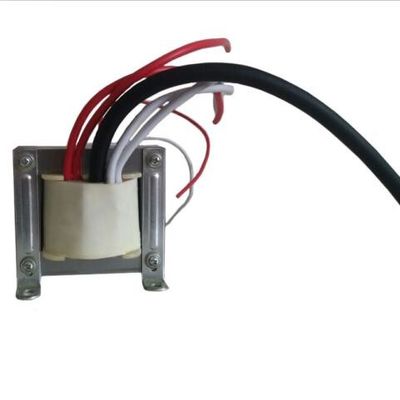

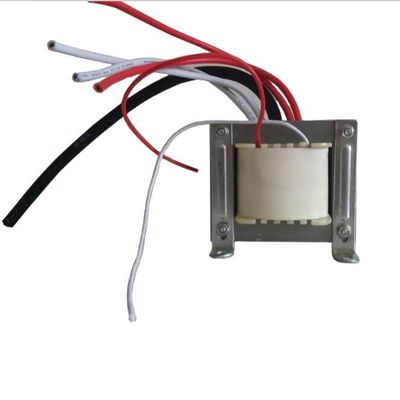

50VA Inverter Use Single Phase Control Transformer Copper Foil Lead Wire



1. Feature

Single phase transformers apply to be used as control power supply of mechanical equipments and electrical & electronic appliance,or as mains power supply of working light and signal light,in single-phase circuit of 50/60Hz,input voltage up to 1000V,output voltage upto 1000V.Standard capacity is up to 800KVA.




Product Name Single phase isolation transformer
Product Model BK-50VA
Winding Material Copper foil
Capacity 50VA
Input Voltage 415V(Can be customized)
Output Voltage 380V(Can be customized)
Frequency 50/60Hz
Connection Type Finger safe Terminals
Insulation Level H
Enclosures Protection Level IP00 or higher
Withstand voltage Test 5000V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz/830V/60s
Cooling Method Natural or air cooling
Temperature Rise ≤80K
Transformation Ratio <3%
Air Carrying Current <3%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!


50VA Inverter Use Single Phase Control Transformer Copper Foil Lead Wire 0

50VA Inverter Use Single Phase Control Transformer Copper Foil Lead Wire 150VA Inverter Use Single Phase Control Transformer Copper Foil Lead Wire 2




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
