16KVA Two Winding Control Transformer

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: DG-16KVA
Minimum Order Quantity: 1 Units
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 10000units/month
Detail Information
Coil: Two Winding Terminal: Finger Safe
Coil Structure: UI Core Type: Dry Type Isolation
Standard: IEC,AS Winding: Copper Wire
Input Voltage: 415V Withstand Voltage: 3000V
High Light:

16KVA two winding transformer


UI Core dry type isolation transformer


415V Single phase two winding transformer

Product Description

16KVA Two Winding Single Phase Control Transformer Finger Safe Terminal



1. Feature

A.The function of preventing system grounding: When single-phase grounding occurs on the load side of the isolation transformer, it will not cause single-phase grounding of the entire system.
B. Reduce short-circuit current: When a short-circuit accident occurs on the load side, limit the short-circuit current of the system.

C. The core is made of high-quality silicon steel,rules and close,anti-oxidation,high strength.



Product Name Single phase isolation transformer
Product Model DG-16KVA
Winding Material Enameled copper wire
Capacity 16kVA
Input Voltage 415V(Can be customized)
Output Voltage 380V(Can be customized)
Frequency 50/60Hz
Connection Type Finger safe Terminals
Insulation Level H
Enclosures Protection Level IP00 or higher
Withstand voltage Test 3000V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz/830V/60s
Cooling Method Natural or air cooling
Temperature Rise ≤80K
Transformation Ratio <3%
Air Carrying Current <3%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!

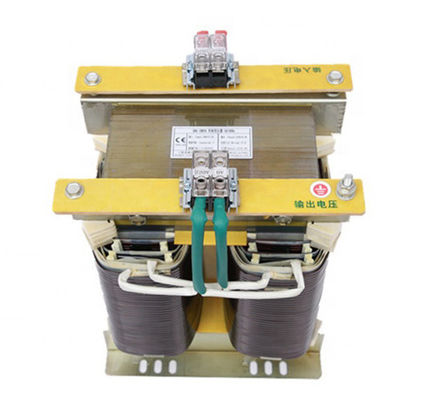

16KVA Two Winding Control Transformer 0

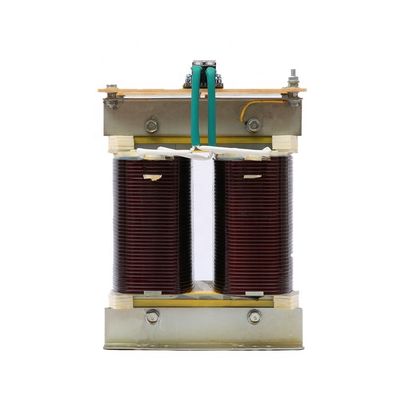

16KVA Two Winding Control Transformer 1



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
