2000VA Copper Wire Transformer Single Phase IP00 380V/220V

Basic Information
Place of Origin: CHINA
Brand Name: WINLEY
Certification: ISO,CE
Model Number: DG-2000VA
Minimum Order Quantity: 50units
Price: $20-$8000
Packaging Details: Plywood case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 10000units/month
Detail Information
Material: Copper Wire Primary Voltage: 380V
Secondary Voltage: 220V Type: Single Phase Step Down Transformer
Insulation Class: F Dielectric Strength: 3.5kV/min
Temperature Rising: ≤75℃ Protection: IP00
High Light:

2000VA copper wire transformer


control voltage transformer 380V to 220V


copper wire transformer single phase

Product Description

2000VA Copper wire Single Phase Control Transformer IP00 380V/220V



1. Feature

A.The function of preventing system grounding: When single-phase grounding occurs on the load side of the isolation transformer, it will not cause single-phase grounding of the entire system.
B. Reduce short-circuit current: When a short-circuit accident occurs on the load side, limit the short-circuit current of the system.

C. The core is made of high-quality silicon steel,rules and close,anti-oxidation,high strength.



Product Name Single phase isolation transformer
Product Model DG-2.0KVA
Winding Material Enameled copper wire
Capacity 2000VA
Input Voltage 380V(Can be customized)
Output Voltage 380/220V(Can be customized)
Frequency 50/60Hz
Connection Type Terminals
Insulation Level H
Enclosures Protection Level IP00 or higher
Withstand voltage Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz/760V/60s
Cooling Method Natural or air cooling
Temperature Rise ≤80K
Transformation Ratio <3%
Air Carrying Current <3%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!

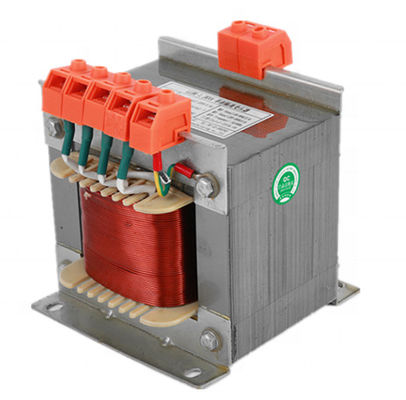

2000VA Copper Wire Transformer Single Phase IP00 380V/220V 0

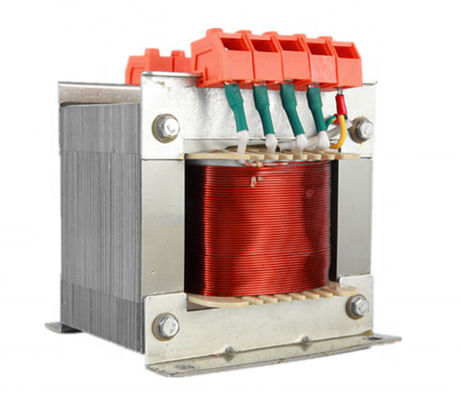

2000VA Copper Wire Transformer Single Phase IP00 380V/220V 1

2000VA Copper Wire Transformer Single Phase IP00 380V/220V 2




1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
