| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WINLEY |
| Certification: | ISO,CE,UL |
| Model Number: | 350VA |
| Minimum Order Quantity: | 50units |
| Price: | $20-$600 |
| Packaging Details: | Plywood case |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 10000units/month |
| Usage: | Electrical Power Supply | Secondary Voltage: | 120x240V/95/115/125V |
|---|---|---|---|
| Frequency: | 50/60Hz | Winding: | Copper Coil |
| Phase: | 1 Phase | Protection: | NEMA 1 |
| Cooling Method: | Air Cooling | Type: | Dry Type |
| High Light: | 60Hz Industrial Control Transformer,125V electrical power transformer,Industrial Control Transformer 120x240V |
||

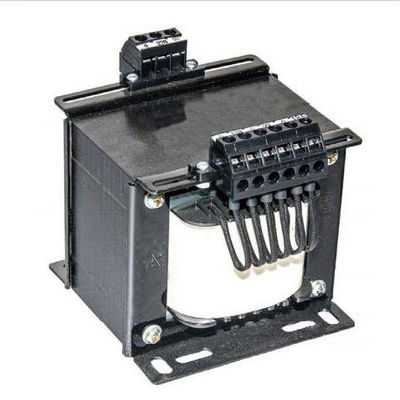

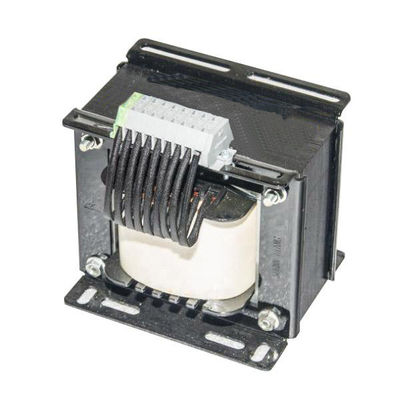

50/60Hz Industrial Control Transformer 120x240V/95/115/125V
Features
1. Ambient air temperature: -25℃~+60℃, the highest monthly mean temperature should not exceed +30℃.
2. Altitude for installing place should not exceed 3000m.
3. When the ambient air temperature is +40℃, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is +25℃, and condensation on the product surface caused by temperature change should be taken into consideration.
Specification
| Product Name | Single phase Control transformer |
| Product Model | BK-200VA |
| Winding Material | Enameled copper wire |
| Capacity | 10VA-5000VA |
| Input Voltage | 230V(Can be customized) |
| Output Voltage | 115V(Can be customized) |
| Frequency | 50/60Hz |
| Connection Type | Finger safe Terminals |
| Insulation Level | F |
| Enclosures Protection Level | IP00 or higher |
| Withstand voltage Test | 3000V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz/830V/60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤80K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
