Large Current Industrial Control Transformer Copper Bar 50/60Hz/Customized

Large Current Industrial Control Transformer Copper Bar 50/60Hz/Customized

Brand Name: WINLEY
Model Number: 1500VA
MOQ: 50units
Price: $20-$600
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE,UL
Type:
Large Current
Terminal:
Copper Bar
Phase:
Single Phase
Insulation:
H
Usage:
Electrical Power Supply
Frequency:
50/60Hz/Customized
Standard:
EN61558 UL5085
Efficiency:
More Than 90%
Supply Ability:
10000units/month
Highlight:

Large Current Industrial Control Transformer

,

Copper bar single phase current transformer

,

Industrial Control Transformer 50Hz

Product Description

Large Current Industrial Control Transformer Copper Bar 50/60Hz/Customized





Features



Industrial Control Transformers provide a low and safe control voltage for the operation of electromagnetic devices, such as motor starters, contactors, solenoids, and timers...or other loads requiring above average voltage regulation when actuated.





Specification



Product Name Single phase Control transformer
Product Model BK-200VA
Winding Material Enameled copper wire
Capacity 10VA-5000VA
Input Voltage 230V(Can be customized)
Output Voltage 115V(Can be customized)
Frequency 50/60Hz
Connection Type Finger safe Terminals
Insulation Level F
Enclosures Protection Level IP00 or higher
Withstand voltage Test 3000V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz/830V/60s
Cooling Method Natural or air cooling
Temperature Rise ≤80K
Transformation Ratio <3%
Air Carrying Current <3%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!

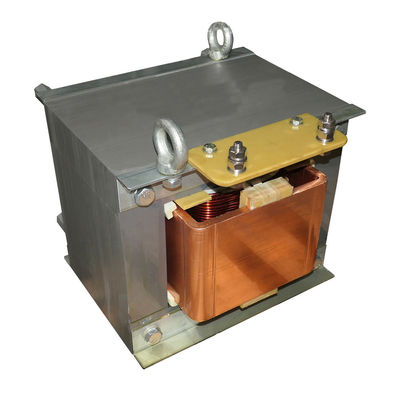

Large Current Industrial Control Transformer Copper Bar 50/60Hz/Customized 0

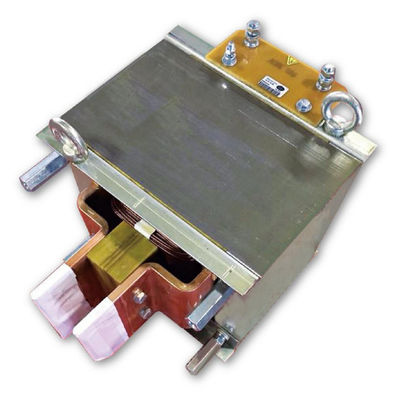

Large Current Industrial Control Transformer Copper Bar 50/60Hz/Customized 1



FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
