| Brand Name: | WINLEY |
| Model Number: | 40KVA |
| MOQ: | 1unit |
| Price: | $25~$60000/Unit |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

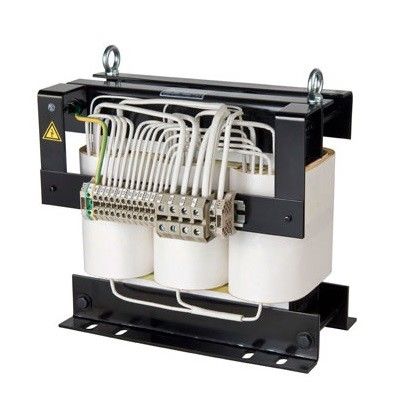

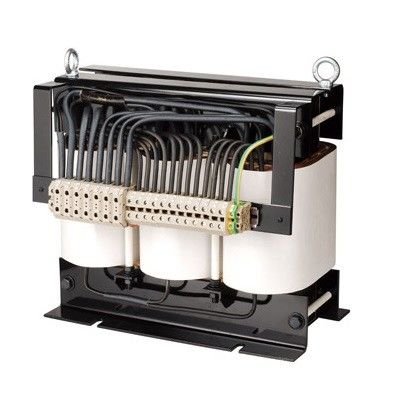

EI Core Three Phase Isolation Transformer 690V/660V/600V/480V/440V/415V/400V/380V/220V
Features
1) Transformers are classified into open-type and protected-type transformers.The protective type transformers are installed with a steel plate case,where there are inlet and outlet wire holes for installing power lines.
2) Standard configuration:1 output voltmeter,1 power indicator,1 fan for heat radiation.
3) Optional:output ammeter.power switch and etc.
| Product Name | Three phase dry type transformer |
| Product Model | SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS |
| Winding Material | Enameled copper wire or enameled aluminum wire |
| Capacity | 100VA~5000KVA |
| Input Voltage | 415V or customized |
| Output Voltage | 380V or customized |
| Frequency | 50/60Hz |
| Connection Type | DYN11/YYN0 |
| Insulation Level | F/H |
| Enclosures Protection Level | IP00 or higher |
| Pressure-tight Test | 2500V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz / 830V / 60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤115K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 4.5% |
| Total Losses | 4% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
