| Brand Name: | WINLEY |
| Model Number: | 500KVA |
| MOQ: | 1unit |
| Price: | $500~$60000/Unit |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

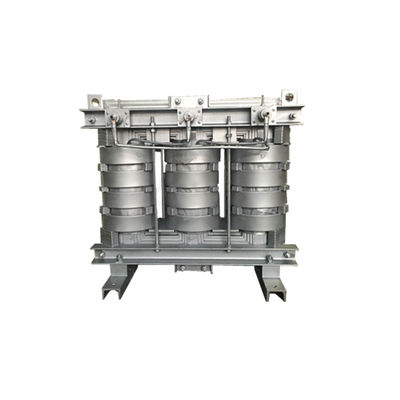

Large Current Three Phase Isolation Transformer Copper Enameled wire
Features
1) Capacity could be customized: whether you need large-capacity transformer or small-capacity transformer, it could be tailored.
2) Clear data display: the input and output voltage could be shown through pointer meters.
3) Copper wire: the windings are made of copper wire, which reduces loss and facilitates sound performance.
4) High-quality silicon steel sheet: this materail is of high permeability.
5) Input and output voltage could be tailored: the voltage is customized according to customers' needs.
| Product Name | Three phase dry type transformer |
| Product Model | SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS |
| Winding Material | Enameled copper wire or enameled aluminum wire |
| Capacity | 100VA~5000KVA |
| Input Voltage | 415V or customized |
| Output Voltage | 380V or customized |
| Frequency | 50/60Hz |
| Connection Type | DYN11/YYN0 |
| Insulation Level | F/H |
| Enclosures Protection Level | IP00 or higher |
| Pressure-tight Test | 2500V/min |
| Insulation Resistance | >100MΩ |
| Ground Resistance | 25A<100milliohm |
| Induction Withstand Voltage Test | 125Hz / 830V / 60s |
| Cooling Method | Natural or air cooling |
| Temperature Rise | ≤115K |
| Transformation Ratio | <3% |
| Air Carrying Current | <3% |
| Impedance Voltage | about 4.5% |
| Total Losses | 4% |
| Efficiency | 80%--99% |
| Operating Temperature | -15℃～40℃ (40℃, 90%R.H., 56days) |
| Storage Temperature | -25℃～100℃(40℃, 90%R.H., 56days) |
| Certificate | CE,ISO |
| The technical parameter for reference only, for exactly technical information, please feel free to contact us! | |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
|
