Three Phase Isolation Transformer
>

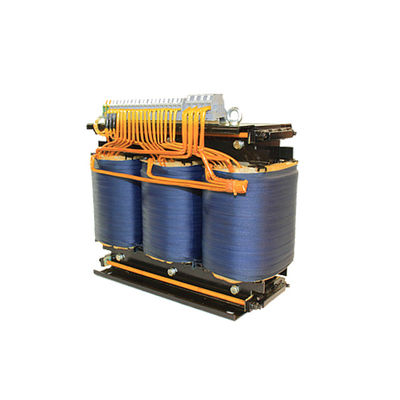

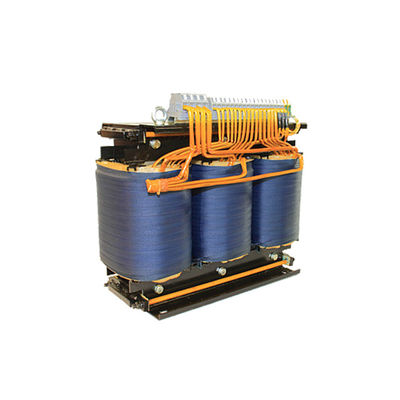

Blue 75KVA 600V AN Three Phase Transformer Copper

Blue 75KVA 600V AN Three Phase Transformer Copper

Brand Name: WINLEY
Model Number: 75KVA
MOQ: 1unit
Price: $500~$60000/Unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Usage:
Power
Silicon Steel:
0.30mm
Frequency:
50/60Hz/customize
Standard:
IEC
Primary Voltage:
600V Or Customized
Secondary Voltage:
440V Or Customized
Cooling Method:
AN
Color:
Blue
Supply Ability:
1000units/month
Highlight:

75KVA 600V AN Three Phase Transformer

,

440V step down transformer

,

Blue Three Phase Transformer

Product Description

75KVA 600V AN Three Phase Isolation Transformer Copper


Features

1) Precise meter accurately displays the output voltage.
2) Convenient for opening and repairing the transformer.
3) Omni-directional wheel make easy to move the transformer.
4) Power indicator light: Check working status any time.
5) Cooling fan:Cooling fan helps heat dissipating to extend the service life.
6) Heat dissipating grid: Increase efficiency of cooling.


Main data

Product Name Three phase dry type transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V or customized
Output Voltage 380V or customized
Frequency 50/60Hz
Connection Type DYN11/YYN0
Insulation Level F/H
Enclosures Protection Level IP00 or higher
Pressure-tight Test 2500V/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!



Production process
Blue 75KVA 600V AN Three Phase Transformer Copper 0


Blue 75KVA 600V AN Three Phase Transformer Copper 1
Blue 75KVA 600V AN Three Phase Transformer Copper 2


FAQ



1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo(MOQ:≥10pcs).

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
