Three Phase Isolation Transformer
>
12 Pulse High Voltage Transformer Three Phase Copper

12 Pulse High Voltage Transformer Three Phase Copper

Brand Name: WINLEY
Model Number: SG-111KVA
MOQ: 1unit
Price: $1000-$50000 per unit
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Type:
12 Pulse High Voltage
Connection:
Ydyd11
Voltage:
13280V
Material:
Copper
Standard:
IEC
Advantage:
Full-load Design
Coil:
Six Coil
Varnish:
Vacumn Varnish
Supply Ability:
1000units/month
Highlight:

12 Pulse high voltage transformer

,

Ydyd11 Isolation Transformer

,

high voltage transformer Copper

Product Description

12 Pulse High Voltage Three Phase Isolation Transformer Copper





Feature





1) High magnetic permeability core and pure copper coil make the transformer more efficient.

2) High quality materials and good heat dissipation make the transformer more durable.

3) Silicon steel and windings are set seamlessly,which makes the transformer quiet when it is working.




Specification



Product Name Three phase dry type transformer
Product Model SG/QZB/SBK/Power transformer/ZSG/SBDG/EPS UPS
Winding Material Enameled copper wire or enameled aluminum wire
Capacity 100VA~5000KVA
Input Voltage 415V
Output Voltage 380V
Frequency 50/60Hz
Connection Type DYN11/YYN0
Insulation Level F/H
Enclosures Protection Level IP20
Pressure-tight Test 40KV/min
Insulation Resistance >100MΩ
Ground Resistance 25A<100milliohm
Induction Withstand Voltage Test 125Hz / 830V / 60s
Cooling Method Natural or air cooling
Temperature Rise ≤115K
Transformation Ratio <3%
Air Carrying Current <3%
Impedance Voltage about 4.5%
Total Losses 4%
Efficiency 80%--99%
Operating Temperature -15℃~40℃ (40℃, 90%R.H., 56days)
Storage Temperature -25℃~100℃(40℃, 90%R.H., 56days)
Certificate CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!





Production process

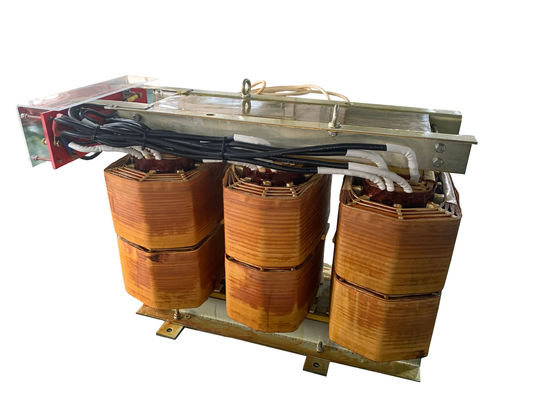

12 Pulse High Voltage Transformer Three Phase Copper 0

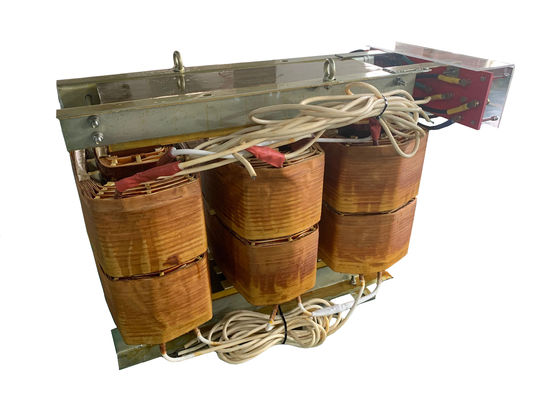

12 Pulse High Voltage Transformer Three Phase Copper 1
