5kVA Single Phase Pole-Mounted Transformer 24940Y/14400V to 120/240V UL Listed For Rural Service

1. Winley Electric pole-mounted distribution transformers are UL and cUL Listed under File No. E543292, with ratings from 10 kVA through 500 kVA. They are built to meet or exceed applicable requirements of ANSI/IEEE, CSA, DOE 2016, and IEC 60076 standards.
2. Winley Electric pole-mounted transformers can be flexibly customized to meet project requirements. Customer-specified accessory brands, such as Eaton Cooper Power series and Qualitrol, can also be provided upon request.
3. Winley Electric transformers are supplied to global markets, including North America, South America, and Southeast Asia. Backed by decades of industry experience, we deliver safe, reliable, and efficient transformer designs with comprehensive technical support.

Engineered for North American overhead distribution, this 5kVA single-phase pole-mounted transformer steps down 24.94kV grounded-wye lines (14.4kV phase-to-neutral) to two independent 120/240V split-phase outputs.

Built with all-copper windings, 125kV BIL insulation, and standard mineral oil cooling (ONAN), this unit delivers exceptionally reliable performance for rural drops, agricultural facilities, and remote infrastructure. Its unique dual-secondary design allows utilities and operators to power two separate low-voltage circuit groups from a single pole location—saving equipment cost and pole space while ensuring standard-compliant isolation.

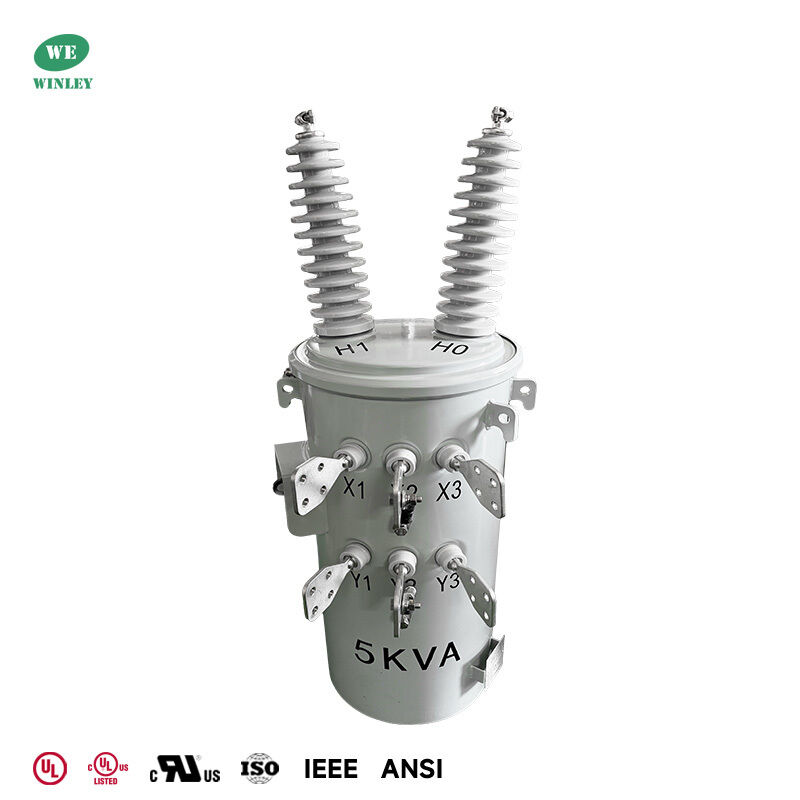

• Two Porcelain High-Voltage Bushings — High-grade porcelain bushings designed for reliable 14.4kV phase-to-neutral connection on overhead feeders.
• Six Low-Voltage Bushings with NEMA 4-Hole Spades — Separate X1-X2-X3 and Y1-Y2-Y3 terminal groups with tin-plated spades for multiple cable connections.
• External Five-Position No-Load Tap Changer — De-energized adjustment (±2 × 2.5%) for quick field voltage tuning without opening the tank.
• Copper Neutral Grounding Strap — Factory-bonded neutral-to-tank strap and dedicated ground connector ensure solid earth grounding.
• Tank Grounding Terminal — Provides a dedicated connection for solid grounding of the transformer tank.
• Pressure Relief Valve — Automatic pressure relief for operational safety and clear internal oil indicators for quick inspection.
• Drain Valve — Provides an access point for draining or sampling the insulating liquid.
• Lightning-Arrester Mounting Provisions — Allow arresters to be mounted close to the primary terminals where required.
• Double Pole-Mounting Hanger Brackets — Secure the transformer to the utility pole structure.
• Lifting Lugs — Provide defined lifting points for handling and installation.
• Stainless Steel Riveted Nameplate — Displays the electrical ratings, tap positions, terminal diagram and unit identification.
