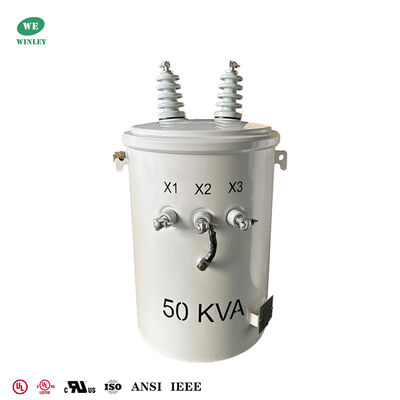

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed

All Category

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Three Phase Dry Type Transformer

Three Phase Isolation Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed

Brand Name:	WINLEY
Model Number:	D-50/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, CE, ISO

Transformer Type:

Overhead Distribution Transformer, Conventional Type

Phase:

Single

Capacity:

50 KVA

Primary Voltage:

12470GrdY/7200

Secondary Voltage:

277/480V

Frequency Rise:

Insulation Rating:

Class E Insulation - 120°C, 248°F

Efficiency Standard(s):

Meets DOE 2016 Standards, Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed

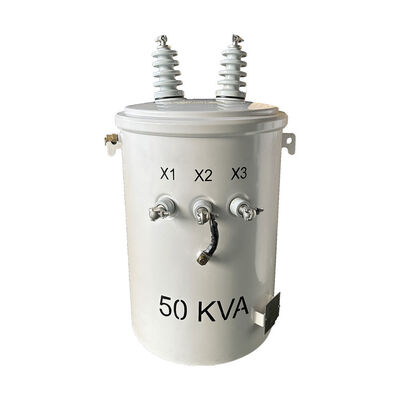

The pole-mounted transformer is a fully sealed cylindrical structure and is installed by pole-mounted suspension. It has the advantages of small size, strong overload capacity, high reliability in continuous operation, simple maintenance, long service life

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed 0

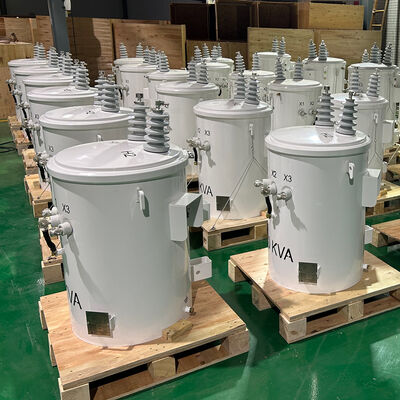

The pole-mounted transformers produced by WINLEY have obtained UL/cUL certification, with rated capacities ranging from 10 kVA to 333 kVA. The products meet or even exceed ANSI, IEEE, CSA, IEC60076 and other standards.

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed 1

Main Data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Phase	Single Phase
Capacity	50 KVA
Primary Voltage	12470GrdY/7200
Primary BIL	95 kV
Secondary Voltage	277/480V
Secondary Voltage Class	1.2 kV Class
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	51 dBA
Efficiency	99.00%
No Load Loss (in watts)	+/- 176W
Full Load Loss (in watts)	+/- 650W

Drawing

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed 2

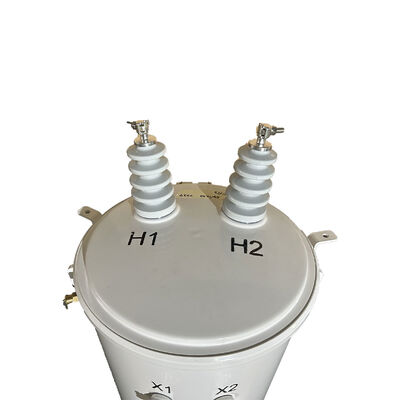

Feature

High pressure porcelain bushing
Low pressure porcelain bushing
Eyebolt Terminals - HV and LV
LV neutral point earthing bus
Compliant with ANSl support lugs
Mild steel tank
Non-PCB mineral oil/FR3rm fluid
0ff-load tap changer
Oil-filling plug with cap and earth
Pressure relief device
Coil: copper/Aluminum winding
lron core: silicon steel
Lifting ears
Nameplate engraving

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed 3

Pole Mounted Transformer Key Craft

1. Magnetic circuit design
The iron core's shape, size, hysteresis, and eddy current loss are important factors to consider. Properly designing the magnetic circuit can lead to efficient energy transmission and reduced loss.

2. Winding design
Factors such as the number of turns, wire material, interlayer insulation, and wiring method should be taken into consideration during the design process. By implementing a well-planned winding design, the transformer can achieve greater load capacity and reliability.

3. Insulation material selection
Choosing the right insulation materials is paramount to ensure safety and longevity. It's essential to opt for insulating materials that offer excellent insulation performance, high-temperature resistance, arc breakdown resistance, and moisture resistance.

4. Vacuum oil filling
Single-phase pole-mounted transformers typically utilize a vacuum oil filling method. This involves treating the transformer chips with a vacuum, injecting insulating oil, eliminating air bubbles, and sealing the transformers. The vacuum oiling process is beneficial as it enhances the insulation performance and thermal stability of the transformer, leading to prolonged service life.

5. Heat treatment
Transformers' mechanical properties and strength can be enhanced through heat treatment. This process alters the material's organizational structure, boosting its hardness and wear resistance while reducing stress and deformation.

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed 4

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed 5

50kva Pole Mounted Transformer 12.47kv To 277v Oil Filled Distribution Electric Pole Transformer UL Listed 6
