Three Phase Pad Mounted Transformer
>
75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards
All Category

Three Phase Isolation Transformer

Oil Type Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Pole Mounted Transformer

Cast Coil Transformer

UPS Isolation Transformer

Medical Isolation Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

EI Power Transformer

Three Phase Auto Transformer

Three Phase Voltage Regulator

Three Phase Reactor
Contact Us
Mr. Steven
steven@winley-electric.com
86-18650108051
Contact Now
Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards

Brand Name: WINLEY
Model Number: ZGS-75/5
MOQ: 1unit
Price: $5000-$150000
Packaging Details: Plywood case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
UL/cUL,CE,ISO
Transformer Type:
Liquid Filled Pad Mounted
Phase:
Three Phase
Feed Type:
Loop Feed
Capacity:
75 KVA
Primary Voltage:
4160V
Secondary Voltage:
208Y/120
Cooling Class:
ONAN; Self-Cooled
Efficiency Ratings:
DOE 2016 , CSA , ANSI/IEEE
Supply Ability:
1000set/month
Highlight:

75 KVA Pad Mounted Transformer

,

4160V to 208V 120V Electrical Power Transformer

,

DOE 2016 Standards Three Phase Transformer

Product Description
75kVA Three Phase Pad Mounted Transformer Step Down 4160V To 208V 120V Electrical Power Transformers
WINLEY's three-phase pad mounted transformers are widely supplied to the North American market, especially the United States. We are committed to providing high-quality, reliable, and efficient power distribution solutions to meet our customers' needs.

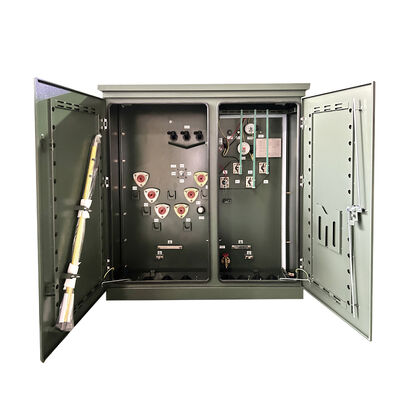

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards 0
A padmount or pad-mounted transformer is a ground mounted electric power distribution transformer in a locked steel cabinet mounted on a concrete pad. Since all energized connection points are securely enclosed in a grounded metal housing, a padmount transformer can be installed in places that do not have room for a fenced enclosure.

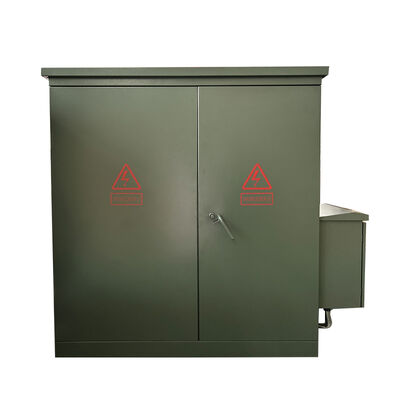

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards 1 75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards 2 75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards 3
Technical Drawings

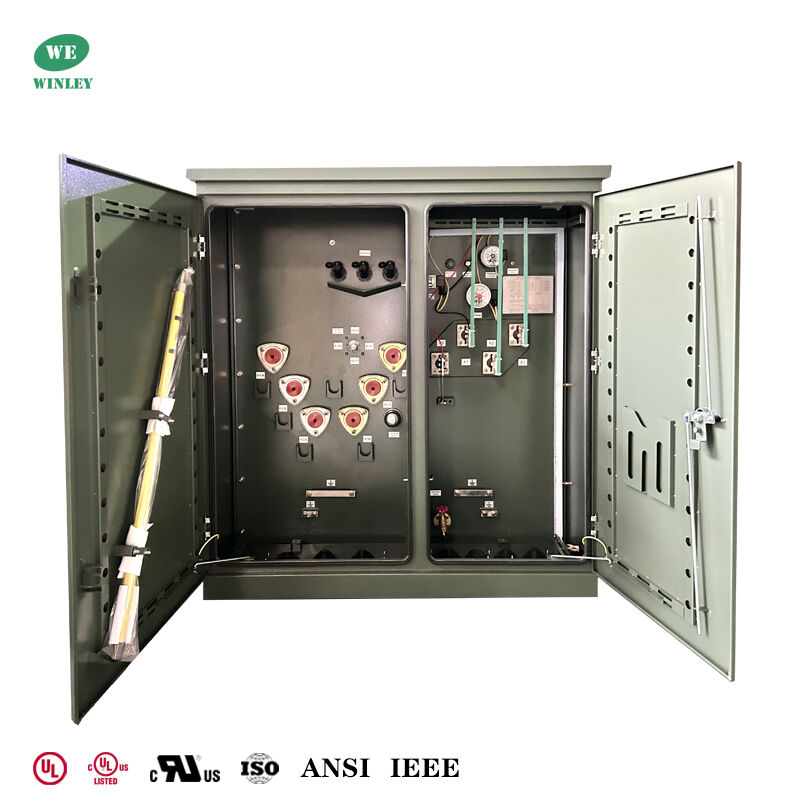

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards 4

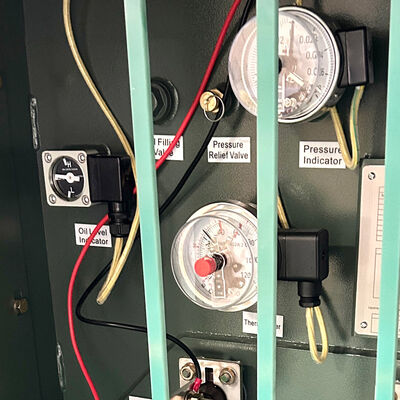

Key Features
  • 60 Hz operation
  • 65°C average winding rise
  • Loop feed arrangements
  • Dead and live front type of HV terminals
  • HV BIL 60 kV (Dead Front)
  • LV BIL 30kV
  • Three-point latching of low-voltage door
  • Rigid steel partition
  • Transformer tank welded from cover to base
  • Permanent nameplate
  • One-inch NPT pipe cap filling provision
  • ANSI tank ground pads
  • One-inch drain valve and sampler
  • Automatic pressure-relief valve (35 SCFM)
  • Tap changer with (± 2.5%)
  • Painted olive-green color (Munsell 7GY 3.29/1.5)
  • Designed, manufactured and tested in accordance with the latest ANSI/IEEE standards
75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards 5
Main Technical Data
Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Operation Step-Down Operation (Not Approved for Step-Up)
Phase Three Phase
Capacity 75 KVA
Vector Group Dyn1
Primary Voltage 4160V
Secondary Voltage 208Y/120
Frequency 60 Hz
Temperature Rise 65°C
Cooling Class ONAN
Efficiency Standard(s) Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material Aluminum
Ambient Temperature Rating 40°C
Sound Level 50 dBA
Efficiency % 99.10%
Specifications
Rated Power (KVA) High Voltage (KV) Low Voltage (V) No-load Loss (W) On-load Loss (W) Height (mm) Depth (mm) Width (mm) Weight (kg) Weight (Lbs)
75KVA 34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others 277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347 180 1250 1430 910 1930 645 1422
150KVA 280 2200 1530 980 1510 989 2180
300KVA 480 3650 1680 1080 1660 1415 3119
500KVA 680 5100 1790 1160 1810 1905 4200
750KVA 980 7500 2030 1300 2030 2755 6074
1000KVA 1150 10300 1854 1549 1651 3235 7132
1500KVA 1640 14500 2150 1570 2210 5835 12864
2000KVA 2160 20645 2220 1600 2380 6430 14175
2500KVA 2680 23786 2330 1650 3070 8865 19544
3000KVA 3300 30300 2460 1850 3260 11300 24912
3735KVA 4125 37875 2680 2060 4080 14400 31746
Production Process

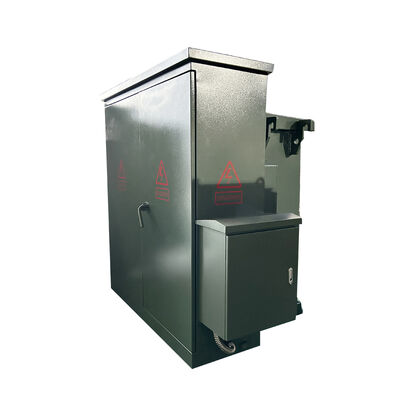

75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards 6 75 KVA Three Phase Pad Mounted Transformer Step Down 4160V to 208V 120V Meets DOE 2016 Standards 7
