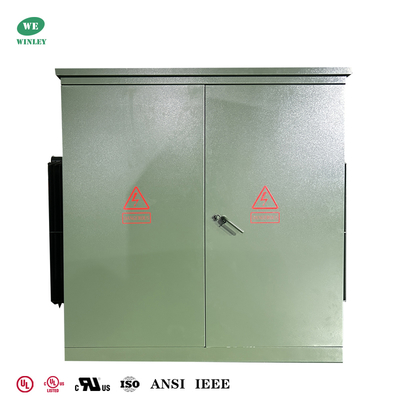

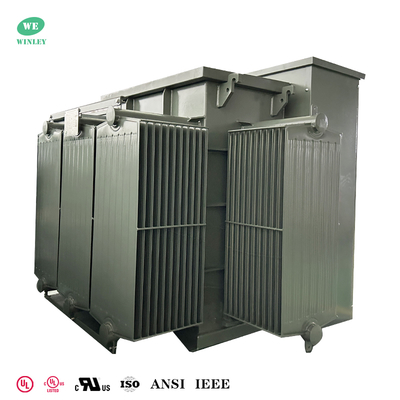

UL listed 1500Kva Three Phase Pad Mounted Transformer Power system distribution Multi-voltage 13.8KV 13.2KV 12.47KV To 480V ASNI Standards
| Brand Name: | WINLEY |
| Model Number: | ZGS-300/12.47 |
| MOQ: | 1unit |
| Price: | $5000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
UL listed three phase transformer
,1500Kva pad mounted transformer
,multi-voltage power distribution transformer
UL listed 1500Kva Three Phase Pad Mounted Transformer Power system distribution Multi-voltage 13.8KV 13.2KV 12.47KV To 480V ASNI Standards

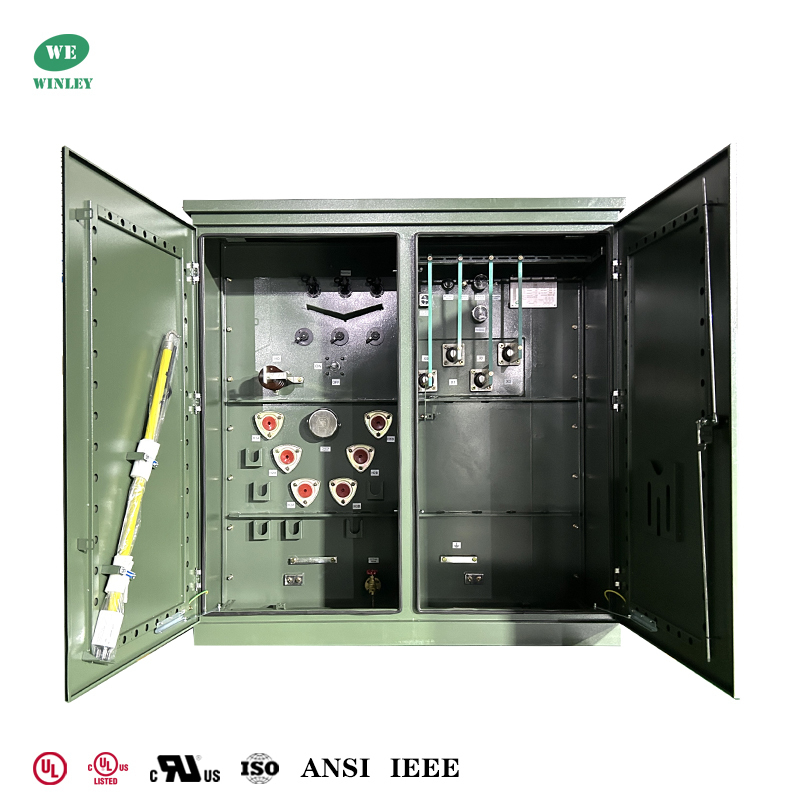

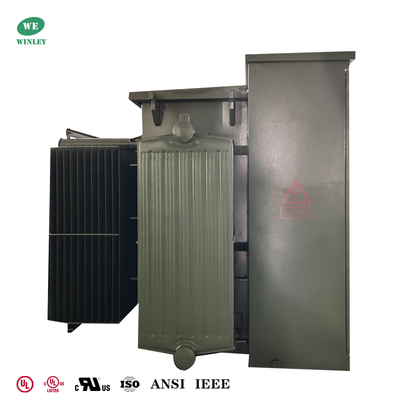

The ZGS-H-1500/13.2 is a pad-mounted, oil-filled transformer designed for loop feed applications. With a 1500 kVA rated capacity, it features a 3-phase system, 13.2 kV primary voltage (Grounded Wye), and 480Y/277 V secondary voltage (Wye-N).
Why choose us
- WINLEY produces a full range of three phase pad mounted transformers with a capacity of 45kva-5500KVA and a voltage of up to 34.5KV. The products meet or even exceed the standards of DOE 2016, IEEE/ANSI, CSA, IEC, NEMA, etc.
- The three phase pad mounted transformer produced by WINLEY has obtained UL/cUL certification (Certificate Number: UL-US-2431836-0, UL-CA-2423202-0), and can apply for UL (partner authorization) according to customer requirements.
- Our products are exported to North America, South America, the Philippines and other places in large quantities. We have rich experience in design and production, professional and reliable after-sales service, and can deliver goods quickly within 7-35 days.
Main data
| ZGS-H-1500/13.2 specification data | ||||
| No. | Particulars | Unit | Specification | |
| 1 | Type | ~ | pad mounted, oil filled | |
| 2 | Rated capacity | kVA | 1500 | |
| 3 | No. of Phase | ~ | 3 phases | |
| 4 | Primary voltage | V | 13200GrdY/7620 | |
| 5 | Secondary voltage | V | 480Y/277 | |
| 6 | Tapping range | V | 14400, 13800, 13200, 12870, 12470, 12000, 11500 | |
| 7 | Cooling method | ~ | ONAN | |
| 8 | Rated frequency | Hz | 60 | |
| 9 | Vector group | ~ | Yyn0 | |
| 10 | Insulation class | ~ | A (105℃) | |
| 11 | Temperature rise | ℃ | 65 | |
| 12 | Impedance | % | 5.75 | |
| 13 | Winding material | ~ | Aluminum | |
| 14 | Core material | ~ | silicon steel | |
| 15 | Cooling material | ~ | mineral | |
| 16 | Service condition | ~ | indoor or outdoor | |
| 17 | Sea level | M | ≤1000 | |
| 18 | Standard | ~ | ANSI C57.12.00 | |
Technical drawings
Standard Features

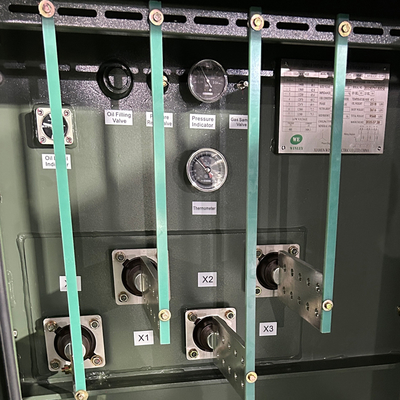

The main components: iron core, winding, fuel tank, oil pillow, breathing apparatus, explosion-proof tube (pressure release valve), radiator, insulating casing, tap switch, gas relay, thermometer, oil purifier, etc
Optional accessories
Application
- Digital Currency Mining – Provides stable power for remote mining farms, ensuring efficient operations.
- Data Centers – Converts high-voltage power for stable electricity and backup during outages.
- Renewable Energy – Transmits solar/wind power to the grid and supports battery storage.
- Commercial Buildings – Powers lighting, HVAC, and IT systems with backup for outages.
- Transport Hubs – Ensures electricity for airports, train stations, and ports (lighting, signals, cranes).
- Agriculture – Distributes power for farm equipment, irrigation, and storage, boosting productivity.
- Industry – Reliable power for machines, automation, and cost-efficient production.
- Schools & Hospitals – Supports critical infrastructure, research, and medical equipment.
Specification
| Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (V) |
No-load Loss (W) |
On-load Loss (W) |
Height (mm) |
Depth (mm) |
Width (mm) |
Weight (kg) |
Weight (Lbs) |
| 75KVA | 34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others |
277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347 |
180 | 1250 | 1430 | 910 | 1930 | 645 | 1422 |
| 150KVA | 280 | 2200 | 1530 | 980 | 1510 | 989 | 2180 | ||
| 300KVA | 480 | 3650 | 1680 | 1080 | 1660 | 1415 | 3119 | ||
| 500KVA | 680 | 5100 | 1790 | 1160 | 1810 | 1905 | 4200 | ||
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 2755 | 6074 | ||
| 1000KVA | 1150 | 10300 | 1854 | 1549 | 1651 | 3235 | 7132 | ||
| 1500KVA | 1640 | 14500 | 2150 | 1570 | 2210 | 5835 | 12864 | ||
| 2000KVA | 2160 | 20645 | 2220 | 1600 | 2380 | 6430 | 14175 | ||
| 2500KVA | 2680 | 23786 | 2330 | 1650 | 3070 | 8865 | 19544 | ||
| 3000KVA | 3300 | 30300 | 2460 | 1850 | 3260 | 11300 | 24912 | ||
| 3735KVA | 4125 | 37875 | 2680 | 2060 | 4080 | 14400 | 31746 |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
