Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers

Brand Name:	WINLEY
Model Number:	D-100/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL, CE, ISO

Application:

Power Distribution System

Phase:

Single

Capacity:

100 KVA

Primary Voltage:

34500Y/19920V

Secondary Voltage:

120/240V

Frequency Rise:

Cooling Class:

Winding Material:

Copper

Supply Ability:

1000set/month

Highlight:

100 KVA pole mounted transformer

34.5kV to 120V dual winding transformer

oil filled distribution transformer

Product Description

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers

Overview

The Winley 100 kVA overhead distribution transformer is a pole-mounted, liquid-filled, single-phase unit designed for reliable, efficient distribution in overhead networks. Built to industry standards and DOE efficiency requirements, this transformer is ideal for residential, commercial and light industrial distribution, retrofit replacement of legacy units, and new construction where compact, durable pole-mount solutions are required.

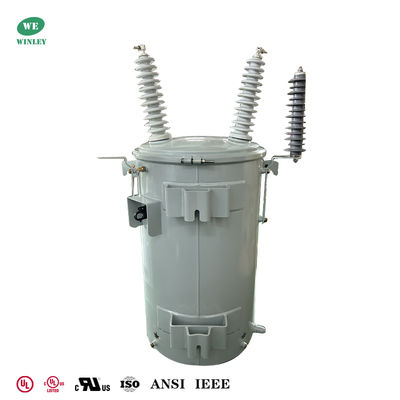

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers 0

Winley Manufacturing & Delivery Capacity

UL/cUL Certified product line: Winley’s single‑phase distribution transformers (10–333 kVA, up to 34.5 kV).
Multi-standard design: Products are engineered to meet or exceed DOE 2016, IEEE, ANSI, CSA, IEC, NEMA and other applicable standards.
Production & delivery capability: Monthly delivery capacity exceeds 800 units; standard quick delivery within 4 weeks available depending on configuration and order size.

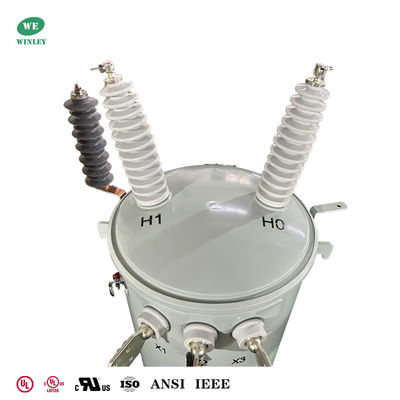

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers 3

Main Data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Phase	Single Phase
Capacity	100 KVA
Primary Voltage	34500GrdY/19920
Primary BIL	125 kV
Secondary Voltage	120/240V
Secondary Voltage Class	1.2 kV Class
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E
Cooling Class	KNAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	51 dBA
Efficiency	99.00%
No Load Loss (in watts)	+/- 268W
Full Load Loss (in watts)	+/- 1,095W

Drawing

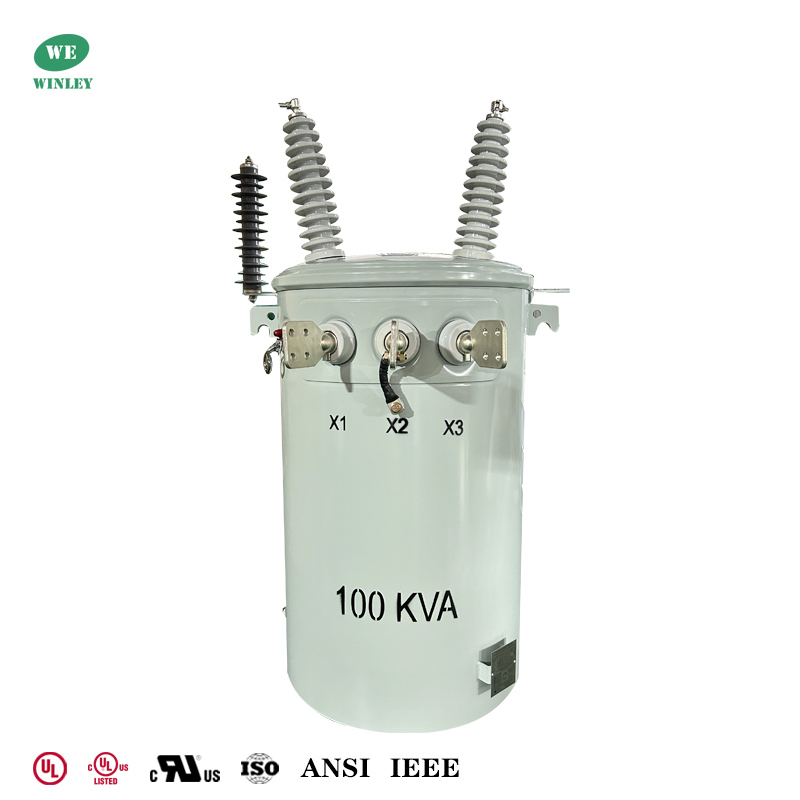

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers 4

Why Choose This Unit

High efficiency: Low operating losses reduce lifecycle energy cost and meet DOE requirements.
Durable construction: Quality materials (copper windings, GO steel core, corrosion resistant tank) for long service life.
Field-friendly: External tap handle, removable top cover, internal oil level marking, drain port, and grounding provisions simplify installation and maintenance.
Certified & compliant: UL/cUL certification plus broad standards compliance provide confidence for utilities and contractors.
Fast availability: Strong production capacity and quick-turn delivery reduce project lead times.

Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

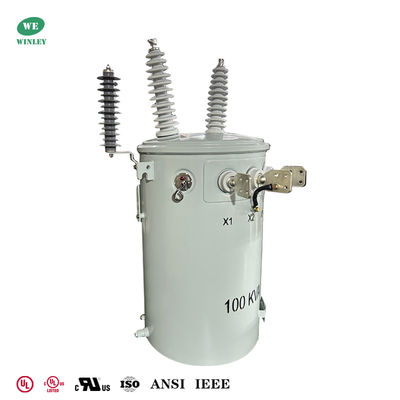

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers 5

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers 6

Power Pole Transformer 100 Kva 34.5kv To 120v Dual Winding Oil Filled Distribution Transformers 7
