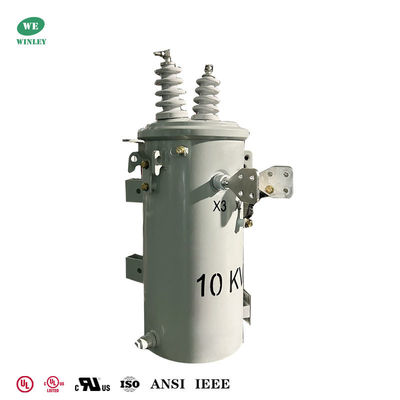

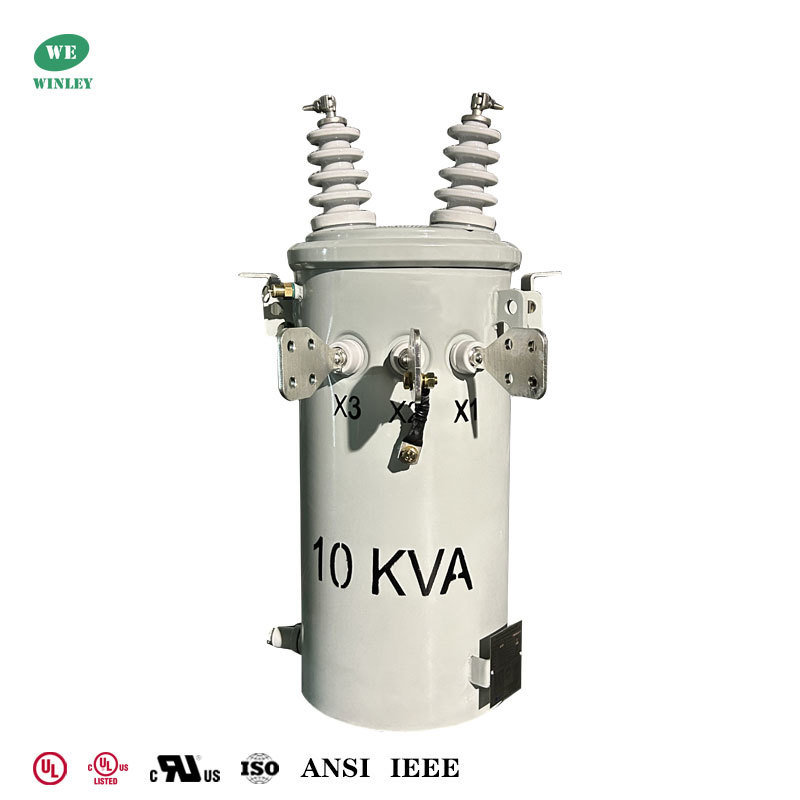

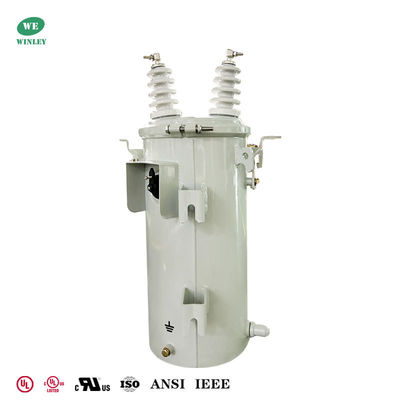

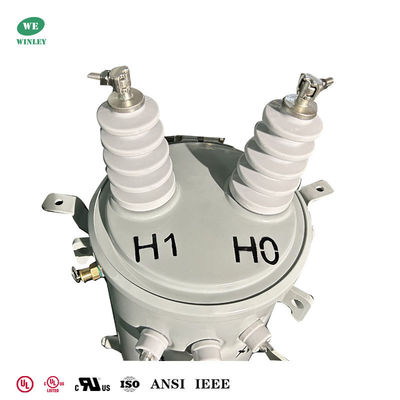

10kVA Single Phase Pole Mounted Distribution Transformer

Winley's 10 kVA Pole-Mount Distribution Transformer, engineered for reliable single-phase service on overhead distribution systems. This compact, ANSI-compliant unit is designed for durable outdoor use and optimized for efficient, long-term performance.

This transformer combines proven design with high efficiency and field-friendly features including externally accessible tap changer, robust bushing insulation, and flexible terminal options, making it an excellent choice for residential and light commercial distribution on overhead lines. Its UL/cUL certification ensures it meets stringent safety and performance standards for North American utilities and contractors.

UL/cUL Certification

Key Features

UL/cUL certified for safety and compliance - provides assurance for North American installations
Capacity: 10 kVA, single phase
Primary: 7200/12470Y Grounded Wye (2-wire) with dual porcelain high-voltage bushings
Secondary: 120/240V (L-N-L)
Cooling: ONAN (Mineral oil, non-PCB) with internal oil level marking and included fill valve
Tap changer: 5-position, externally operable handle; tap spacing 2.5% (2 FCAN above, 2 FCBN below) mounted at side of tank body
Low losses: No-load loss 36 W, full-load loss 120 W; efficiency at 100% load 98.46%
Impedance: ~2%
Windings: Copper; Core: Grain-oriented steel
Terminals: Tin-plated primary and secondary accepting copper or aluminum conductors
Primary BIL: 95 kV
Automatic pressure relief device; provisions to mount lightning arrestors at H1 and H2 primary terminals
Rugged construction: Coated steel tank with corrosion-resistant cover band, removable top cover, ANSI gray paint
Mounting: Pole mount via hanger brackets; lifting lugs and tank grounding provisions included
Compact footprint: 32" H x 20" W
Conforms to ANSI/IEEE C57.12.20

Technical Drawings

Specifications

Rated Capacity (kVA)	High Voltage (v)	Low Voltage (v)	Connection Symbol	Standard	Short-circuit impedance (%)	Efficiency
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production Process
