Pole Mounted Transformer

UL Listed 50kva Single Phase Pole Mounted Transformer 4160V To 240V 480V ANSI IEEE Standards

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

UL Listed 50kva Single Phase Pole Mounted Transformer 4160V To 240V 480V ANSI IEEE Standards

Brand Name:	WINLEY
Model Number:	D-50/4.16
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Pole Mounted Transformer

Phase:

Single Phase

Capacity:

50KVA

Primary Voltage:

4160V

Secondary Voltage:

120/240V

Cooling Class:

KNAN; Self-Cooled

Efficiency Standard(s):

DOE 2016 , ANSI/IEEE

Winding Material:

Copper

Supply Ability:

1000set/month

Highlight:

UL listed pole mounted transformer

50kva single phase transformer

4160V to 240V 480V transformer

Product Description

50kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer

WINLEY's 50 kVA single-phase pole mounted transformer, is certified with UL listing . With a wide voltage range of 2.4-34.5kV, the transformer adheres to various international standards such as ANSI, IEEE, CSA, IEC, and DOE, ensuring global compatibility and performance.Drawing on 17 years of expertise in design and export, the WINLEY team is equipped to cater to diverse requirements.

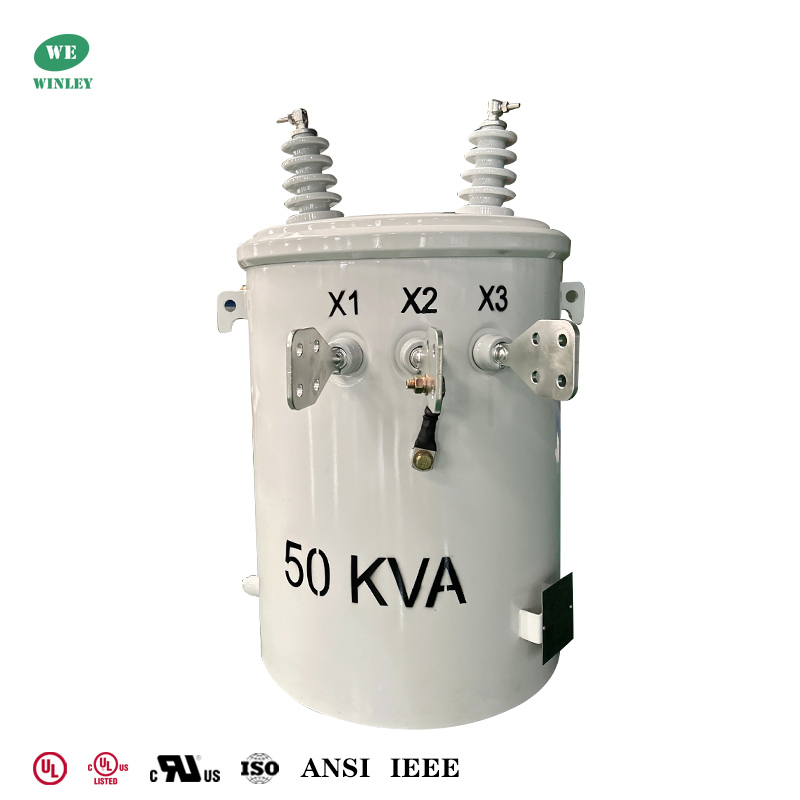

UL Listed 50kva Single Phase Pole Mounted Transformer 4160V To 240V 480V ANSI IEEE Standards 0

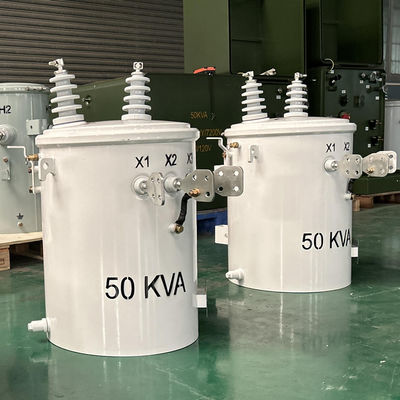

UL Listed 50kva Single Phase Pole Mounted Transformer 4160V To 240V 480V ANSI IEEE Standards 1

Pole-mounted transformer UL/cUL certificate

Sinlge Phase Pole Mounted Transformer Structural Features

1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.
2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.
3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.
4. This item comes with a pressure relief valve that is capable of self-sealing.
5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.
6. The ground terminal on the tank is a ring bolt ground terminal.

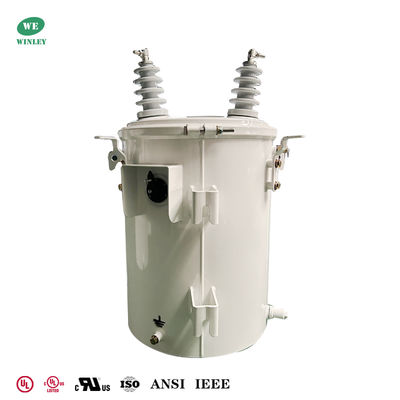

UL Listed 50kva Single Phase Pole Mounted Transformer 4160V To 240V 480V ANSI IEEE Standards 6

Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Phase	Single Phase
Capacity	50 KVA
Primary Voltage	4160Y/2400
Secondary Voltage	240/480V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	KNAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	48 dBA
Efficiency	98.90%

Standard Feature

Lifting lugs
Arrester mounting pads
Cover-mounted high votage porcelain
Bushing(s) with eyebolt terminal
Low voltage bushings wtih eyebolt terminals
Low voltage enutral grounding strap
ANSI support lugs with laser inscribed nameplate on lower bracket
Polyester insulated cover
Self-venting and resealing cover assembly
Centerline core/coil assembly support brackets
Low voltage leads
Oil fill plug with cover ground strap
Tank ground pad

UL Listed 50kva Single Phase Pole Mounted Transformer 4160V To 240V 480V ANSI IEEE Standards 7

Specifications

Pole-mounted transformer specifications
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

UL Listed 50kva Single Phase Pole Mounted Transformer 4160V To 240V 480V ANSI IEEE Standards 8

UL Listed 50kva Single Phase Pole Mounted Transformer 4160V To 240V 480V ANSI IEEE Standards 9

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.

Tags:

pole mounted distribution transformer

single phase pole mounted transformer
