Pole Mounted Transformer

10kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

10kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer

Brand Name:	WINLEY
Model Number:	D-10/4.16
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Pole Mounted Transformer

Phase:

Single Phase

Capacity:

10KVA

Primary Voltage:

4160V

Secondary Voltage:

120/240V

Cooling Class:

KNAN; Self-Cooled

Efficiency Standard(s):

DOE 2016 , ANSI/IEEE

Winding Material:

Copper

Supply Ability:

1000set/month

Highlight:

10kva pole mounted transformer

single phase overhead distribution transformer

oil immersed electrical transformer 4160V

Product Description

10kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer

WINLEY Transformer manufactures 10 kVA single-phase pole-mounted transformers that strictly adhere to international standards such as DOE 2016 Standards, ANSI/IEEE. Our commitment to delivering excellence drives us to offer customized solutions, ensuring our 10 kVA pole-mounted transformers precisely match your unique technical requirements.

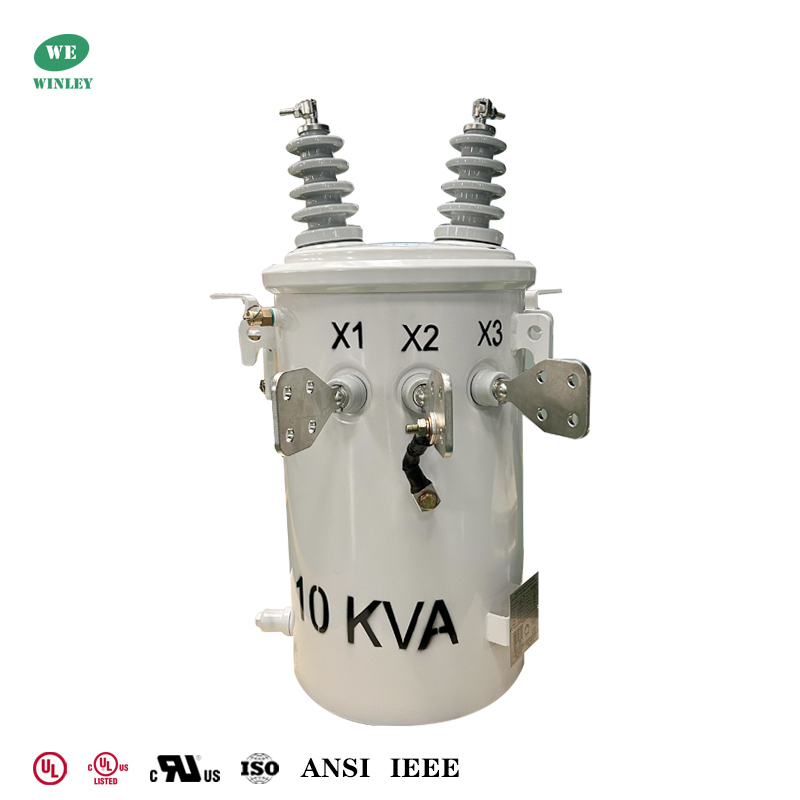

10kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer 0

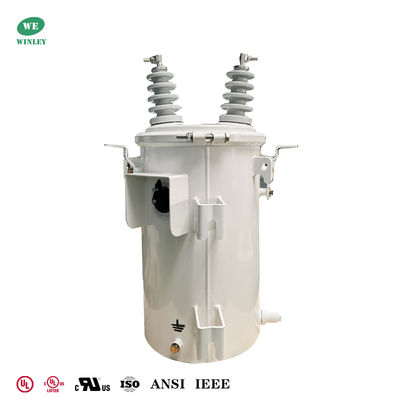

10kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer 1

Technical drawings

10kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer 2

Why choose us

1.The pole-mounted transformers produced by WINLEY have obtained UL/cUL certification, with rated capacities ranging from 10 kVA to 333 kVA. The products meet or even exceed ANSI, IEEE, CSA, IEC60076 and other standards.
2.Through optimized electrical design, our products are safe, stable, and efficient, helping you save operating costs
3.Our products have been exported to North America, Central and South America, Southeast Asia and other markets in large quantities. We have rich experience and can provide comprehensive technical support and services.

10kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer 3

Main data

Phase	Single Phase
Capacity	10 KVA
Primary Voltage	4160GrdY/2400
Primary BIL	60 kV
Secondary Voltage	120/240V (L-N-L)
Secondary Voltage Class	1.2 kV Class
Secondary Phasor	Dual Winding Single Phase
Secondary BIL	30 KV
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material	Copper
Ambient Temperature Rating	40°C
Ambient Operating Temperature Range	-40°C to +40°C (-50°F to +104°F)
Sound Level	48 dBA

Standard Feature

Lifting lugs
Arrester mounting pads
Cover-mounted high votage porcelain
Bushing(s) with eyebolt terminal
Low voltage bushings wtih eyebolt terminals
Low voltage enutral grounding strap
ANSI support lugs with laser inscribed nameplate on lower bracket
Polyester insulated cover
Self-venting and resealing cover assembly
Centerline core/coil assembly support brackets
Low voltage leads
Oil fill plug with cover ground strap
Tank ground pad

10kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer 4

Specifications

Pole-mounted transformer specifications
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

10kva Single Phase Pole Mounted Transformer Oil Immersed 4160V To 120V Overhead Electrical Distribution Transformer 5

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
