Pole Mounted Transformer

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed

Brand Name:	WINLEY
Model Number:	D-10/12.47
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Transformer Type:

Pole Mounted

Capacity:

10KVA

Primary Voltage:

7200/12470Y

Secondary Voltage:

120/240V (L-N-L)

Frequency:

Winding Material:

Copper

Cooling Class:

Standard:

ANSI / IEEE Standard C57.12.20

Supply Ability:

1000set/month

Product Description

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed

A compact, reliable single‑phase pole‑mount distribution transformer designed for utility and commercial applications. Built to meet ANSI/IEEE standards, it provides dependable 120/240 V secondary service from a 7200/12470Y grounded‑wye primary and is optimized for low‑loss, long‑term operation.

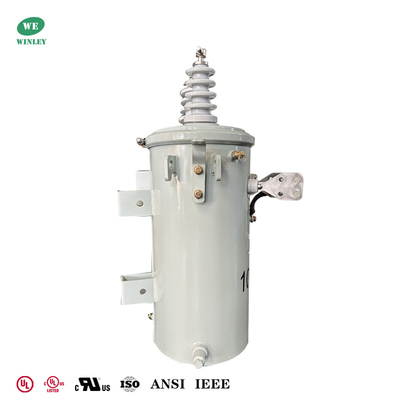

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed 0

Performance & Design: High‑efficiency copper windings with a grain‑oriented steel core and mineral‑oil (ONAN) cooling deliver stable thermal and electrical performance with low no‑load and load losses.

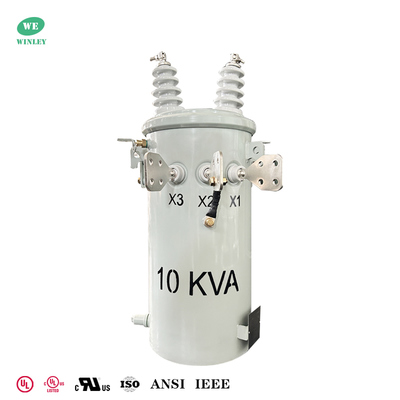

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed 1

The transformer’s coated steel enclosure with corrosion‑resistant details, porcelain high‑voltage bushings and tin‑plated terminals, together with grounding and lightning‑arrestor provisions, simplifies installation and maintenance, while pole‑mount hanger brackets, lifting lugs, a fill valve and removable access covers ensure straightforward field handling and servicing.

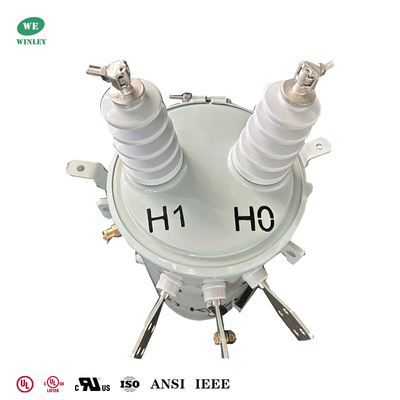

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed 2

WINLEY’s pole‑mount transformers are UL/cUL certified and available in rated capacities from 10 kVA to 333 kVA. Our products meet or exceed major international standards, including ANSI, IEEE, CSA, and IEC 60076. With extensive experience in pole‑mount transformer design and manufacture, WINLEY provides comprehensive technical support and after‑sales service.

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed 3

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed 5

Pole Mounted Transformer Main data

Phase	Single Phase
Capacity	10 KVA
Primary Voltage	7200/12470Y Grounded Wye (2 Wire)
Secondary Voltage	120/240V (L-N-L)
Frequency	60 Hz
Temperature Rise	65°C
Cooling Class	ONAN
No Load Loss	30W
Full Load Loss	115W
Impedance (approx)	2%
Winding Material	Copper
Core Material	Grain Oriented Steel
Ratings	Conforms to ANSI / IEEE Standard C57.12.20

Technical drawings

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed 7

Pole Mounted Transformer Standard Features

Cost-effective design
High efficiency and low noise levels
Dual voltage capability
Customization based on specific requirements
Coating meets or exceeds IEEE C57 standard
CSA-compliant lifting lugs
Excellent sealing for protection against environmental factors
Polymer-type low voltage bushings
Porcelain-type high voltage bushings
Convenient cover or sidemounted voltage bushings
Spade or clamp type terminals
High and low voltage terminals
Compatible with both mineral oil and biodegradable vegetable oil as insulating oil
Provision for surge arrester bracket, with brackets available if needed

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed 8

Advantages of Pole-mounted Transformers

1.Cost-effective:The installation of pole mounted transformer is less expensive than the construction of pad mounted systems.These types of systems are frequently the most cost-effective choice available.

2.Reliability :In terms of maintenance and repair, pole mounted transformers are easy to maintain and examine.As a result, they are an alternative for the distribution of power to the general population and are generally considered to be more dependable.

3.Flexibility:A pole mounted transformer can adapt to the ever-changing electrical requirements of communities because of the modular nature of its design.

4.Safety :Pole-mounted transformers are generally designed with safety standards before mounting on a pole. Engineers follow a certain safety requirements to reduce the risk of electrical shocks.

5.Compatibility :The use of pole-mounted transformers is an ideal option since it is extremely flexible. These units are compatible with electrical grids and concrete woods, making the distribution of power easy and smooth.

Pole Mounted Transformer Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed 9

10Kva Single Phase Pole Mounted Transformer 12.47KV To 120V Power Distribution Transformer UL Listed 10

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
