Pole Mounted Transformer

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed

All Category

Three Phase Isolation Transformer

Three Phase Pad Mounted Transformer

Single Phase Pad Mounted Transformer

Industrial Control Transformer

Single Phase Control Transformer

Toroidal Isolation Transformer

Three Phase Dry Type Transformer

Three Phase Reactor

Mr. Steven

steven@winley-electric.com

86-18650108051

Contact Now

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed

Brand Name:	WINLEY
Model Number:	D-25/7.2
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO

Transformer Type:

Pole Mount Distribution Transformer

Capacity:

25 KVA

Primary Voltage:

7200V

Secondary Voltage:

120/240V (L-N-L)

Frequency:

Temperature Rise:

Cooling Class:

Standards:

Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards

Supply Ability:

1000set/month

Product Description

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed

A compact, reliable 25 kVA pole‑mount overhead distribution transformer with a 7200V delta primary and 120/240V dual‑winding secondary. Built with copper windings and non‑PCB mineral oil (ONAN) cooling, it meets DOE 2016, CSA and ANSI/IEEE standards, delivers high efficiency 99% .

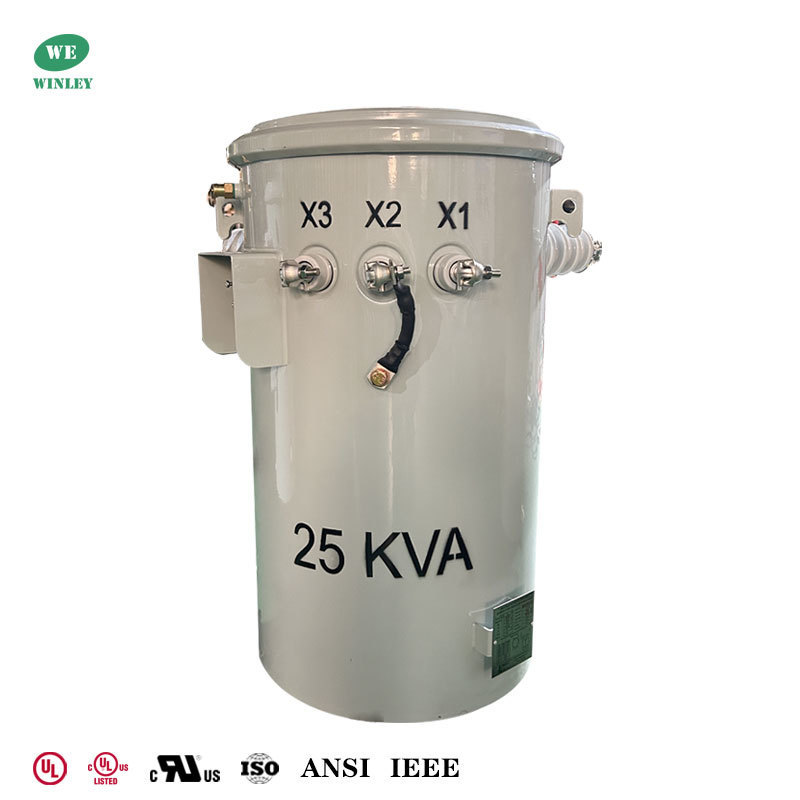

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed 0

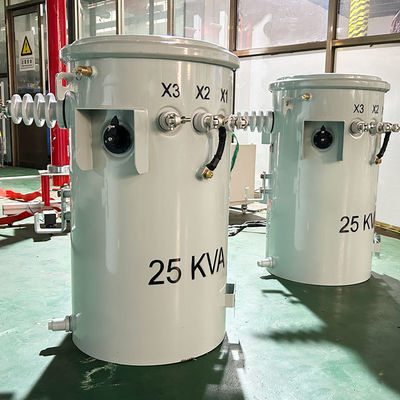

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed 1

WINLEY's pole-mounted transformers, UL/cUL certified, offer 10-333 kVA capacity and exceed ANSI, IEEE, CSA, IEC60076 standards. With decades of expertise, we deliver full technical support and export globally to North/South America and Southeast Asia. Our safe, stable, and efficient designs cut operational costs for reliable power solutions.

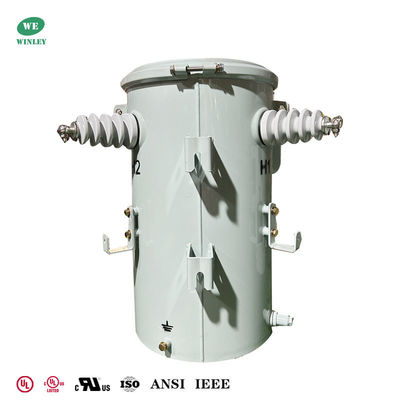

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed 3

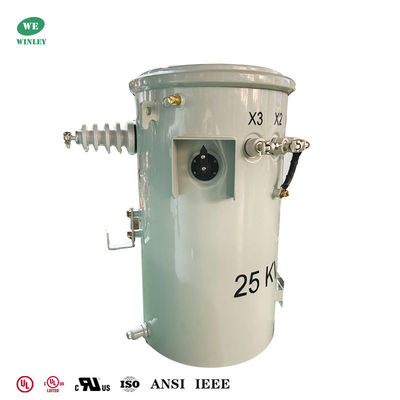

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed 5

Pole Mounted Transformer Main data

Transformer Type:	Overhead Distribution Transformer, Conventional Type
Transformer Configuration:	Liquid Filled Pole Mounted
Phase:	Single Phase
Capacity:	25 KVA
Primary Voltage:	7200V
Secondary Voltage:	120/240V (L-N-L)
Secondary Phasor:	Dual Windings, Single Phase
Secondary BIL:	30 KV
Frequency:	60 Hz
Temperature Rise:	55°C
Insulation Rating:	Class E Insulation - 120°C, 248°F
Forced Air (Fans):	None
Cooling Class:	ONAN; Self-Cooled
Efficiency Standard(s):	Meets DOE 2016 Standards, Meets CSA Standards Meets ANSI/IEEE Standards
Winding Material:	Copper
Ambient Temperature Rating:	40°C
Ambient Operating Temperature Range:	-40°C to +40°C (-50°F to +104°F)
Dimensions*:	21.05''-W x 24.1''-D x 39.45''-H
Dry Weight*:	198.41 lbs
Efficiency:	99.05%
No Load Loss (in watts):	+/- 100W
Full Load Loss (in watts):	+/- 370W

Technical drawings

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed 7

Sinlge Phase Pole Mounted Transformer Structural Features

1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.
2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.
3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.
4. This item comes with a pressure relief valve that is capable of self-sealing.
5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.
6. The ground terminal on the tank is a ring bolt ground terminal.

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed 8

Pole Mounted Transformer Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed 9

25Kva Single Phase Pole Mounted Distribution Transformer Oil-immersed 7.2KV To 120V UL/cUL Listed 10
