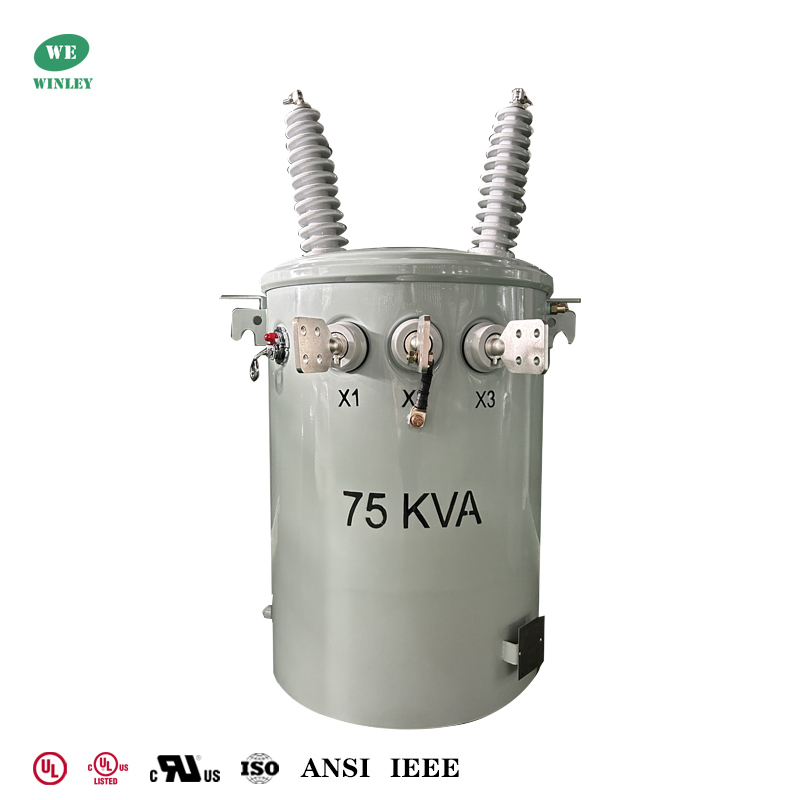

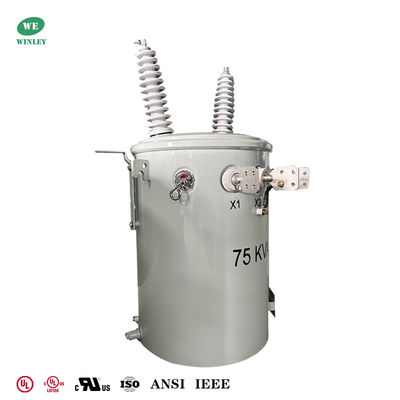

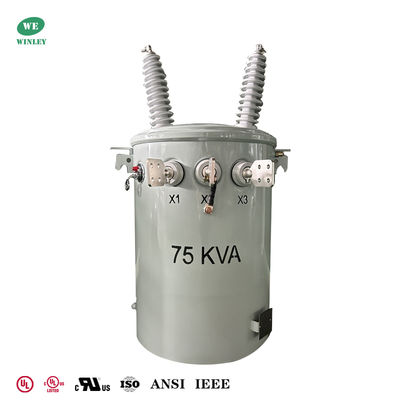

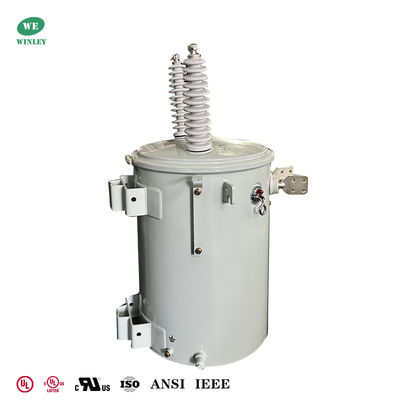

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed

Brand Name:	WINLEY
Model Number:	D-75/34.5
MOQ:	1unit
Price:	$1000-$10000
Packaging Details:	Plywood case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

UL/cUL,CE,ISO

Transformer Type:

Pole Mounted Transformer

Capacity:

75 KVA Or Customized

Primary Voltage:

34500V

Secondary Voltage:

120/240V (L-N-L)

Insulation Rating:

Class E Insulation - 120°C, 248°F

Winding Material:

Copper

Cooling Class:

Efficiency:

99.00%

Supply Ability:

1000set/month

Product Description

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed

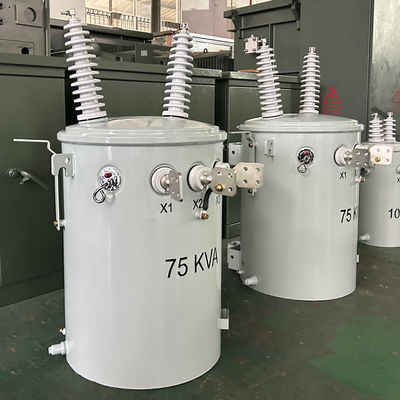

The Overhead Distribution Transformer is a conventional, single-phase, liquid-filled, pole-mounted unit designed for efficient power distribution. With a capacity of 75 KVA, it operates at primary and secondary voltages of 34500V and 120/240V, respectively. The transformer meets DOE 2016 efficiency standards and complies with ANSI/IEEE standards, achieving 99% efficiency.

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed 0

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed 1

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed 3

The pole-mounted transformers produced by WINLEY have obtained UL/cUL certification, with rated capacities ranging from 10 kVA to 250 kVA. The products meet or even exceed ANSI/ IEEE, CSA, IEC60076 and other standards.

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed 4

Pole Mounted Transformer Main data

Transformer Type	Overhead Distribution Transformer, Conventional Type
Phase	Single Phase
Capacity	75 KVA
Primary Voltage	34500V
Secondary Voltage	120/240V (L-N-L)
Secondary Phasor	Dual Windings, Single Phase
Frequency	60 Hz
Temperature Rise	65°C
Insulation Rating	Class E Insulation - 120°C, 248°F
Cooling Class	ONAN; Self-Cooled
Efficiency Standard(s)	Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation)	K-1 (Standard)
Insulation Fluid	Mineral Oil, Non PCB Fluid
Winding Material	Copper
Ambient Temperature Rating	40°C
Sound Level	50 dBA
Dimensions*	26.50''-W x 28.15''-D x 47.22''-H
Total Weight (Liquid Filled)*	870 lbs
Efficiency	99.00%
No Load Loss (in watts)	+/- 240W
Total Load Loss (in watts)	+/- 1,090W

Technical drawings

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed 6

Pole Mounted Transformer Standard Features

Lifting lugs
Arrester mounting pads
Cover-mounted high votage porcelain
Bushing(s) with eyebolt terminal
Low voltage bushings wtih eyebolt terminals
Low voltage enutral grounding strap
ANSI support lugs(hanger brackets) with laser inscribed nameplate on lower bracket
Polyester insulated cover
Self-venting and resealing cover assembly
Centerline core/coil assembly support brackets
Low voltage leads
Oil fill plug with cover ground strap
Tank ground pad
Secondary circuit breaker

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed 7

Performance Characteristic

1. The products are widely used in power transmission and distribution of industrial and agricultural power networks.
2. Iron core is made of cold-rolled silicon-steel sheet with high conduction of magnetism and adopts pulling-plank structure, so that its magnetic route is short, losses and noise level is low.
3. Compress wire is adopted for winding so losses are low and have good ability withstand short-circuit.
4. The oil tank is bell type with the structure of full folding plate type, having an excellent exterior and easy for maintenance.

Pole Mounted Transformer Specifications

10kva-333kva Single-phase oil immersed transformer
Rated Cap acity(kVA)	High	Low Voltage(v)	Connection Symbol	Standard	Short-circuit impedance(%)	Efficiency
	Voltage(v)					(%)
10	4160 7200 12000 12470 13200 13800 19920 24940 34500	110 220 230 400 480	II0,II6	IEEE/ANSI/ DOE	1.8-4%	98.7
15						98.82
25						98.95
37.5						99.05
50						99.11
75						99.19
100						99.25
167						99.33
250						99.39
333						99.43

Production process

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed 8

75Kva Single Phase Pole Mounted Transformer Overhead Distribution Dual Windings 34500V to 120/240V UL/cUL Listed 9

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
